Animal Tissue Observer
Animal tissue Observer is specially designed for in vivo microscopic observation of animal trachea and tissues.
Phone Consultation
Follow us
- Introduction
- Features
- More Recommendations
Introduction
In scientific research, during microscopic observation of live trachea or tissues, slight movement of the tissue often poses challenges to precise analysis.

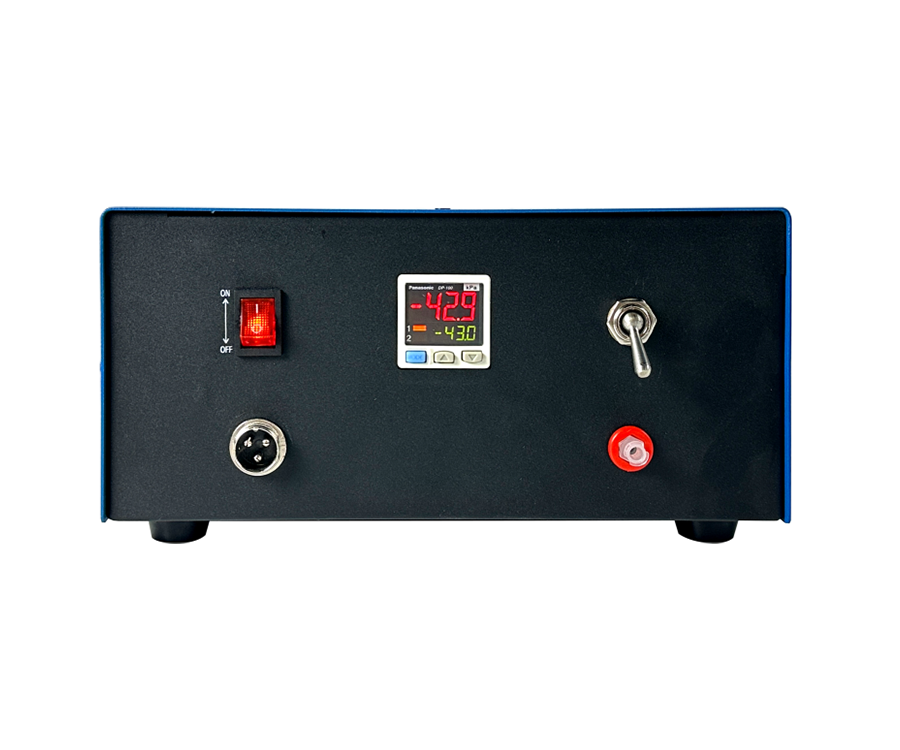

The Animal Tissue Microscope adopts a negative pressure control device, firmly fixing the organ or tissue under the microscope to eliminate movement, enabling clear and precise observation.
The Animal Tissue Microscope adopts a negative pressure control device, firmly fixing the organ or tissue under the microscope to eliminate movement, enabling clear and precise observation.
Features
Pressure control range:-100 kPa to 0 kPa.
Easy operation:On/Off control via foot pedal switch.
Wide Application Range:Suitable for various live tissues or organs (e.g., heart, liver, skin, lungs).
Non-destructive Observation:Simple negative pressure control causes no damage to live tissues and does not affect tissue activity.
High Clarity:The observation stage is equipped with a high-transmittance borosilicate glass slide, which does not alter the normal optical path of the microscope and produces no visual distortion.
Multi-model Compatibility:Easy to use and compatible with multiple microscope models.
Easy operation:On/Off control via foot pedal switch.
Wide Application Range:Suitable for various live tissues or organs (e.g., heart, liver, skin, lungs).
Non-destructive Observation:Simple negative pressure control causes no damage to live tissues and does not affect tissue activity.
High Clarity:The observation stage is equipped with a high-transmittance borosilicate glass slide, which does not alter the normal optical path of the microscope and produces no visual distortion.
Multi-model Compatibility:Easy to use and compatible with multiple microscope models.
Specifications
| Parameter | Specification |
|---|---|
| Voltage | AC 220 V/50 Hz |
| Power | 3.8 W |
| Pressure control range | -100 kPa - 0 kPa |
| Fixed rod dimensions | Ø4.0 mm |
| Fixed base dimensions | Ø12.0 mm (Standard), 190×150 mm (Custom) |
| Adapter viewing window | Ø4.0 mm (Other sizes customizable) |
Optional
| Model | Specification |
|---|---|
| TS-100-S1 | Suction cup for viewer |
| TS-100-S0 | Custom size |
| TS-100-L10 | Bracket |
