Say goodbye to experimental drug waste! Say goodbye to experimental drug waste! Say goodbye to experimental drug waste! Say goodbye to experimental drug waste As a core tool in biomedical research, ultrasound imaging technology has demonstrated irreplaceable value in cardiovascular function assessment, tumor monitoring, neurovascular research and other fields.However, traditional small animal ultrasound systems are limited by the number of physical channels and imaging algorithms, and still face challenges in submillimeter structural analysis and multimodal functional imaging.


As a national high-tech enterprise incubated by the Shenzhen Institute of Advanced Technology, Shenzhen Huanying Medical Technology Co., Ltd. has launched innovative ultrasound systems that have been applied in single-channel, wearable and multi-channel arrays (64/128/256/1024 channels).

The device can achieve millimeter-level precise energy focusing, significantly improving the treatment depth and effect while avoiding tissue damage, providing cost-effective non-invasive treatment solutions for fields such as neuromodulation, tumor ablation, targeted drug delivery and rehabilitation therapy.

1. High-resolution imaging: 50μm ultra-high resolution breaks the acoustic diffraction limit, enabling clear observation of microscopic events such as the opening and closing of embryonic heart valves and tumor microangiogenesis;

2. Photoacoustic imaging expansion: It can expand the ultrasound + photoacoustic dual-modality fusion, capture molecular functional information such as blood oxygen levels based on the photoacoustic effect, and simultaneously obtain information such as tissue structure and blood oxygen;

3. Expansion of brain functional imaging: fUS technology enables whole-brain functional monitoring and can be applied to a variety of animals from mice, rats to non-human primates, facilitating the study of cerebrovascular-related diseases and mechanisms.

Collaborating with the National Key Laboratory of Medical Imaging to Promote the Development of High-End Ultrasound Technology

Since its founding, Huanying Medical has been committed to the research, development, and industrialization of cutting-edge, high-end biomedical ultrasound technologies. With over two decades of accumulated experience, Huanying Medical has developed a deep technical foundation in innovative applications such as ultrasound catheter imaging and high-resolution imaging. Focusing on research ultrasound, interventional ultrasound, and ultrasound laboratory automation, Huanying Medical has developed a comprehensive ultrasound product line. As a national high-tech enterprise incubated by the Shenzhen Institutes of Advanced Technology, Chinese Academy of Sciences, Huanying Medical has established a comprehensive platform for the development and industrialization of ultrasound transducers and ultrasound imaging/therapy systems.

As a core national research platform in my country's medical imaging field, the National Key Laboratory of Medical Imaging Science and Technology System focuses on innovation across the entire medical imaging chain, from basic research to technological development and clinical translation, to serve the needs of the nation's comprehensive health strategy. Huanying Medical is collaborating closely with the National Key Laboratory of Medical Imaging, conducting in-depth collaboration in areas such as ultrasound/optical multimodal imaging and ultrasound brain functional imaging, with the goal of building a high-end medical ultrasound technology R&D and industrialization platform in China.

Huanying Medical's core technologies have been approved for numerous major ultrasound-related projects at the national, provincial, ministerial, and municipal levels. The company boasts extensive technical expertise in innovative applications such as ultrasound catheter imaging, high-resolution imaging, ultrasonic pipetting, and ultrasound therapy. As an innovation engine and technological benchmark in the ultrasound field, Huanying Medical, with its core focus on "full-chain solutions," continuously defines the future of ultrasound technology, from underlying probe algorithms to clinical implementation, from hardware innovation to ecosystem development.

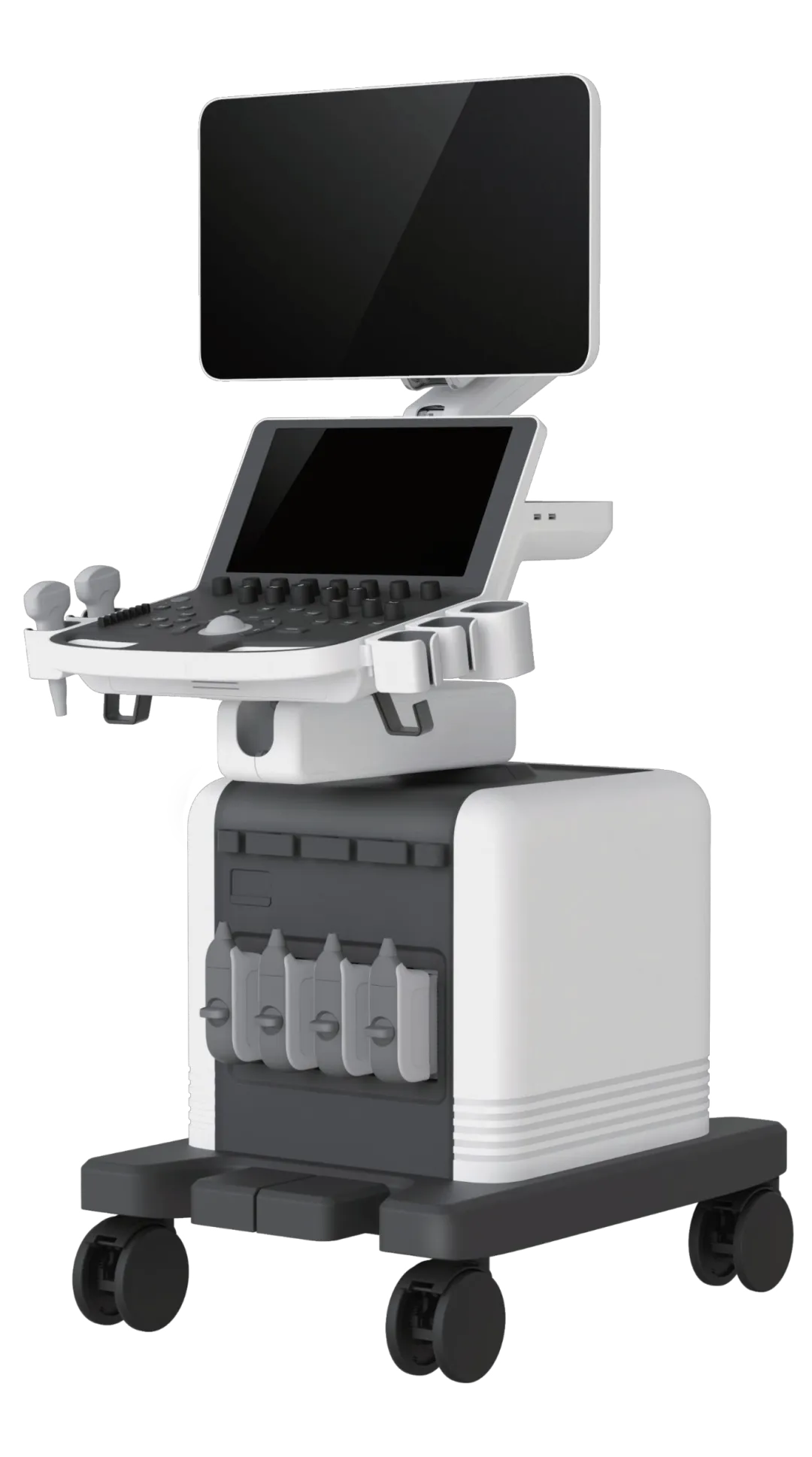

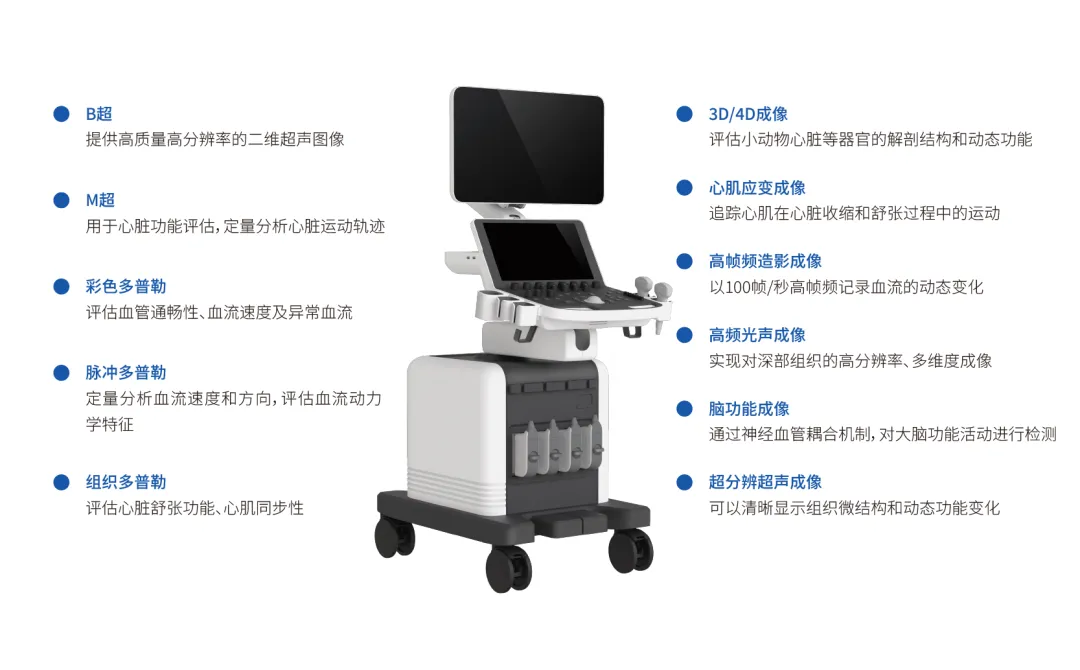

Sonorover Ultra-High Resolution Small Animal Ultrasound Imaging System

The Sonorover ultra-high frequency small animal ultrasound imaging system is equipped with a high-resolution imaging platform, a flexible ultra-high frequency probe configuration, a frequency of up to 50MHz, and supports a variety of advanced optional functions to meet the research field's ultrasound imaging needs for biomedical applications such as small animal cardiovascular, abdominal organs, tumors, and embryos.

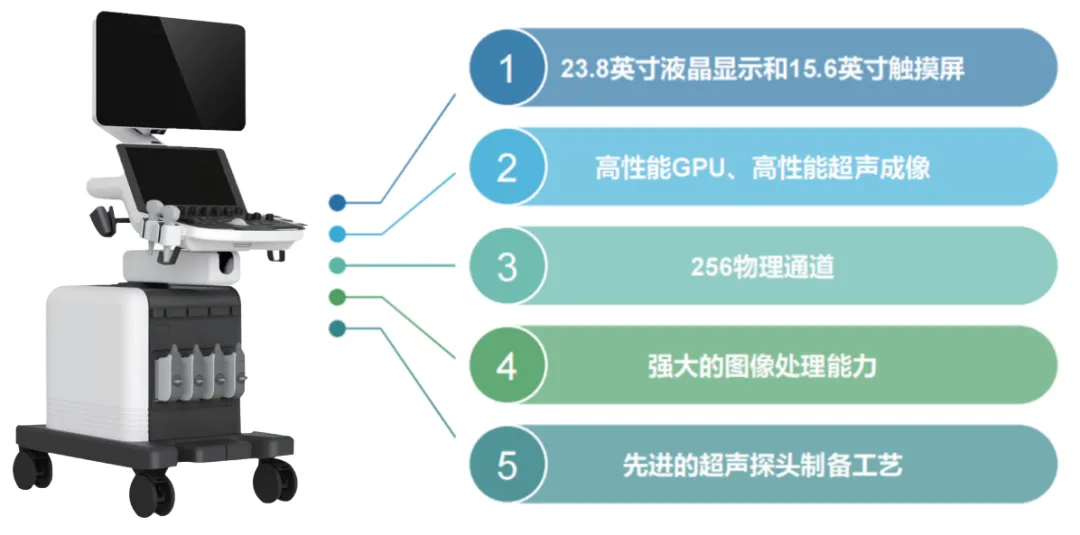

01.Excellent performance, defining industry standards
The Sonorover ultrasound imaging system, equipped with a proprietary high-performance imaging platform and combining cutting-edge ultrasound imaging technology, sets industry standards with exceptional image quality. It can be expanded to include photoacoustic imaging and brain function imaging. Whether studying cardiovascular and abdominal organs, tumors, or embryos, it can reveal every microscopic structure in the body with unimaginable clarity.

02.UHF probe, flexible configuration

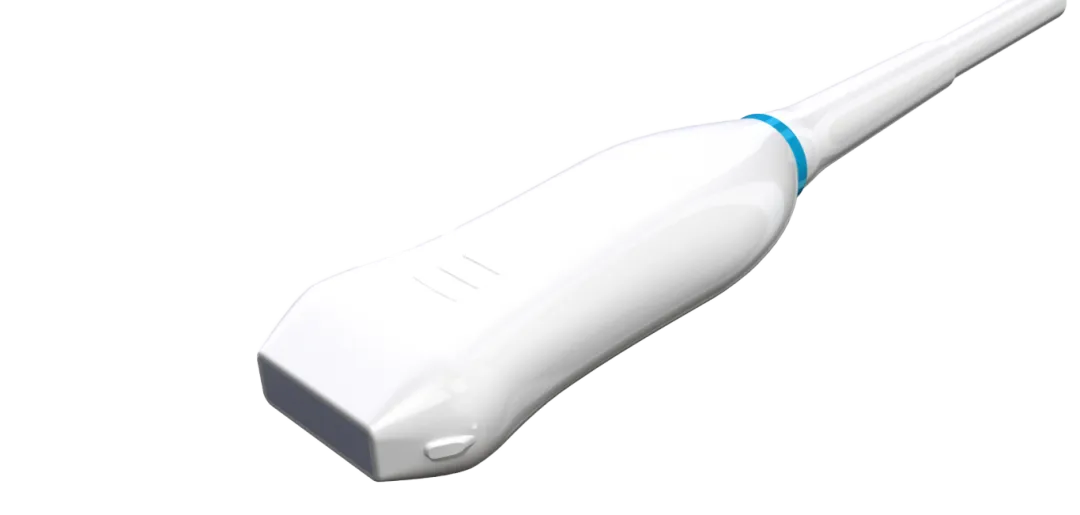

The system offers flexible configurations for a variety of ultra-wideband probes, enabling optimal imaging solutions for a wide range of applications, from large animals to ultra-small experimental species like mice and zebrafish. Probes such as the L50-18A and L32-14A cover a wide frequency range from 18 MHz to 50 MHz, supporting ultra-high resolutions of 50 μm, meeting diverse research needs and ensuring precise and clear imaging every time.

03. Multifunctional imaging, comprehensive analysis

From B-ultrasound and M-ultrasound to color Doppler and pulsed Doppler, myocardial strain imaging, 3D/4D imaging, and brain function imaging, Sonorover integrates a variety of advanced imaging modes, providing researchers with a comprehensive and multi-angle perspective. In particular, high-frame-rate contrast imaging, 3D/4D imaging, and super-resolution ultrasound imaging have pushed scientific research to new heights.

Advanced imaging effects

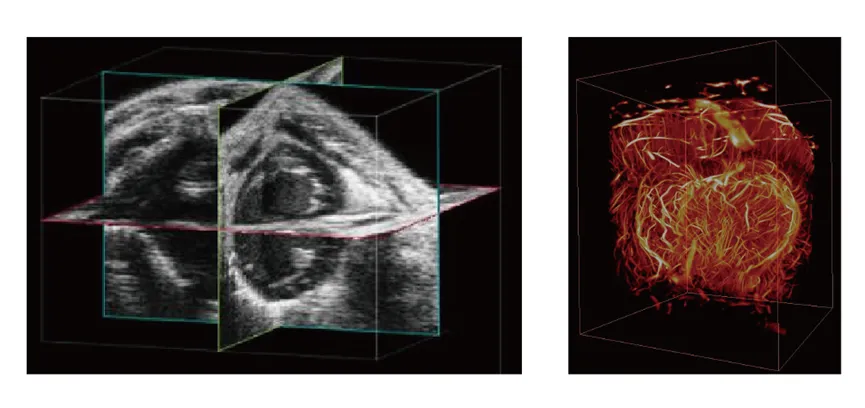

01.3D/4D Imaging
Used to comprehensively evaluate the anatomical structure and dynamic function of the heart and other organs in small animals. It can study the structure, movement, and blood flow changes of the heart in small animals, and observe tumor blood supply, angiogenesis, and treatment response.

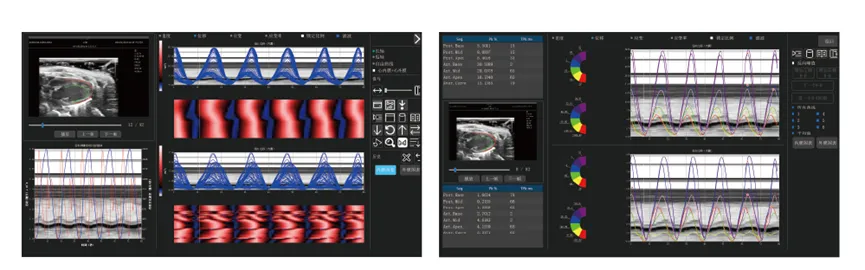

02. Myocardial strain imaging
By quantitatively analyzing myocardial strain parameters, accurate assessment of myocardial function can be achieved, helping to detect subtle myocardial abnormalities and providing reliable data support for the research and diagnosis of cardiovascular diseases.

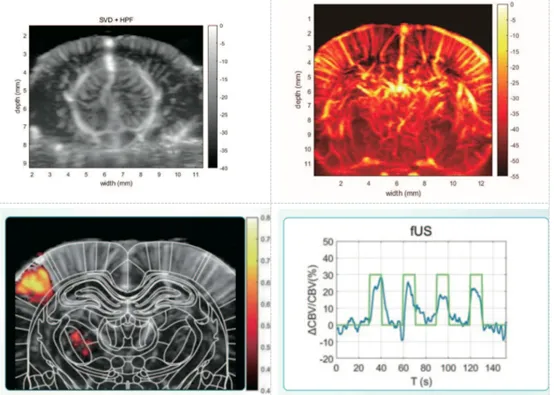

03. Functional Urinary System Imaging (fUS)
fUS can detect brain functional activities through the neurovascular coupling mechanism and can be applied to a variety of animals from mice, rats to non-human primates to assist in the study of cerebrovascular-related diseases and mechanisms.

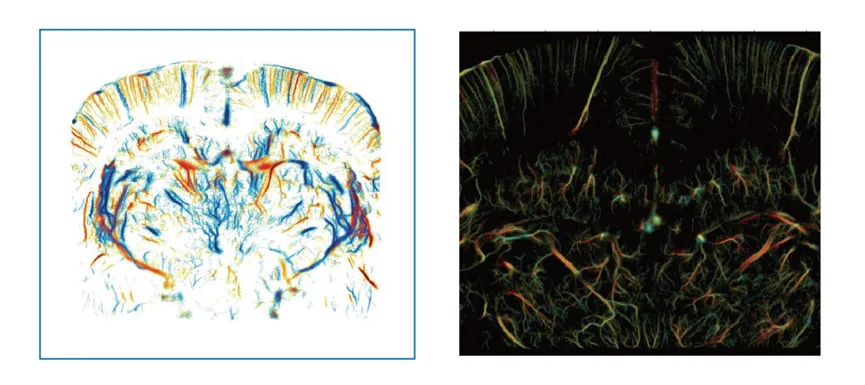

04. Super-resolution ultrasound imaging
Through innovative microbubble localization technology, we break through the diffraction limit and achieve subwavelength resolution. This allows microvascular imaging and hemodynamic research to achieve unprecedented precision, providing a new observation tool for cutting-edge research on tumor microenvironment and neurovascular coupling.

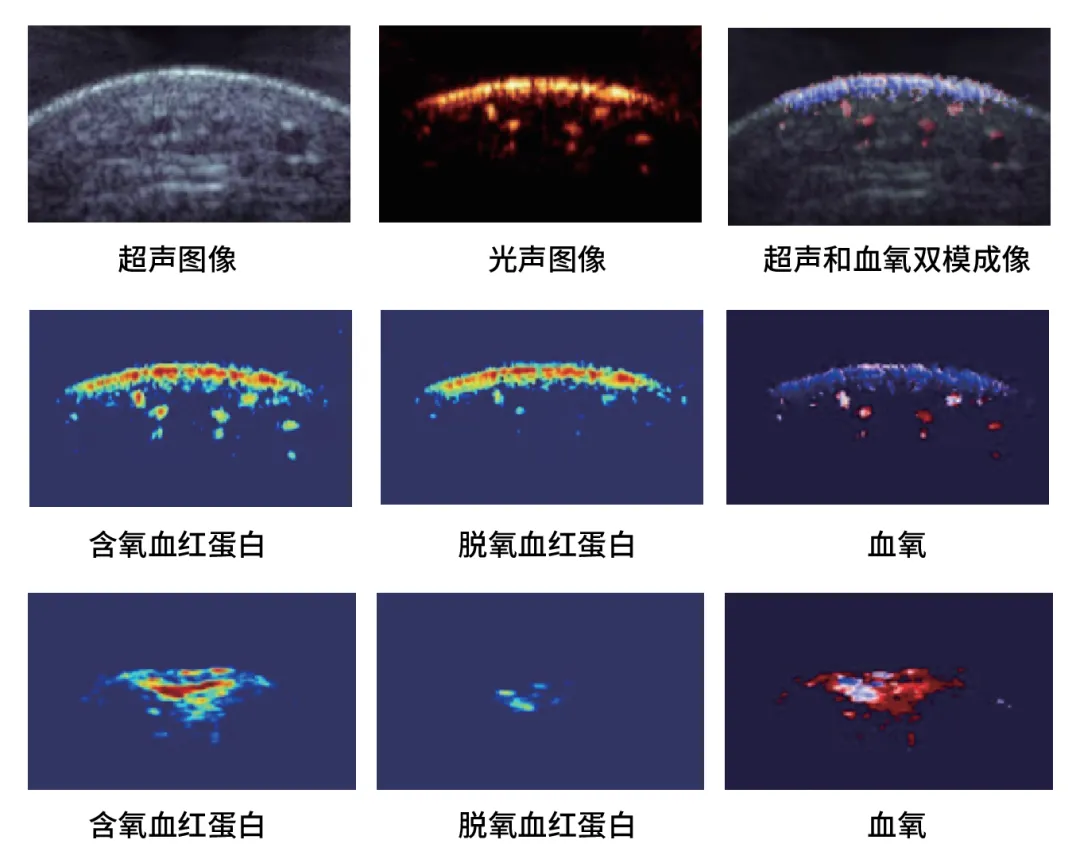

05. High-frequency photoacoustic imaging
Photoacoustic ultrasound imaging is an innovative imaging method that combines high-frequency ultrasound and photoacoustic technology. High-frequency ultrasound clearly reveals tissue structure with fine spatial resolution, while photoacoustic technology uses the photoacoustic effect to capture molecular functional information such as blood oxygen levels. The two complement each other to achieve high-resolution, multi-dimensional imaging of tissues.

Yuyan Instruments: Professional assistance and all-round support

As the Chinese agent for Huanying Medical's ultrasound system, Yuyan Instruments has been collaborating closely with the Shenzhen Institute of Advanced Technology of the Chinese Academy of Sciences on ultrasound system projects, helping ultrasound systems achieve commercialization from R&D to implementation. Yuyan has played an indispensable role in marketing, sales, and product technical support, and is committed to providing customers with one-stop services before, during, and after sales.

1. Professional sales team, considerate service: Yuyan Instruments has an experienced sales team who are familiar with the products and understand your needs better, providing you with personalized solutions and professional consulting services.
2. Experienced technical support and escort: We are well aware of the importance of technical support and have a technical support team composed of senior engineers who are ready to provide you with timely and effective technical support and solutions at any time.

Self-developed core creates extraordinary strength

Shanghai Yuyan Scientific Instrument Co., Ltd., as a leading manufacturer of scientific research equipment in the industry, has been adhering to the core concept of "innovation drives development, and self-research creates quality" for 14 years since its establishment in 2010. It is committed to the independent research and development and production of scientific instruments. Its current product line covers multiple scientific research and application fields such as experimental animal husbandry, physiological signal acquisition, and neuroscience research. Not only does it continuously optimize and upgrade conventional instruments, but it also dares to explore cutting-edge technologies and has launched a series of high-end scientific instruments with independent intellectual property rights. The company's R&D personnel account for 40%, and it has a team of scientists in sensors, chip design, core algorithms, etc., and has professional teams to provide support in product implementation and operation, market and academic promotion, comprehensive product solution design and application. The company has service points covering the whole country and strong technical service capabilities. Its customers include Tsinghua University, Peking University, Zhejiang University, Shanghai Jiaotong University, University of Chinese Academy of Sciences, West China Hospital of Sichuan University, Northern Theater Command General Hospital and other first-class research institutions and hospitals at home and abroad.
