ACS Series Multi-Channel Rodent Anesthesia System
The ACS Series Multi-Channel Rodent Anesthesia System is a portable solution designed specifically for surgical and physiological research involving mice and rats. Featuring a multi-channel design, the system can simultaneously deliver maintenance anesthesia for up to four animals, making it ideal for laboratories conducting parallel surgeries or high-throughput physiological studies. It provides a safe, stable, and fully controllable operating environment that meets the demands of modern multi-
Phone Consultation
Follow us
- Introduction
- Features
- More Recommendations
Introduction
The ACS Series Multi-Channel Rodent Anesthesia System is a portable solution engineered for laboratories that require multi-channel experimental capability. It supports maintenance anesthesia for up to four animals simultaneously while providing a dedicated induction anesthesia channel for an additional subject—perfectly meeting the needs of high-throughput or parallel surgical and physiological studies.
The system delivers a stable and uniform gas flow with precise control over both carrier gas flow rate and anesthetic vapor concentration. It supports seamless transitions between induction and maintenance anesthesia, ensuring reliable performance throughout surgical procedures. An integrated waste-gas scavenging system effectively captures anesthetic exhaust, preventing environmental contamination and ensuring a safer workspace for research personnel.
Features
Key Features
Premium Imported Vaporizer — Stable & Leak-Proof：Equipped with a high-quality imported precision vaporizer featuring advanced temperature-compensation technology, the system delivers highly accurate output (±0.1%) with exceptional stability and airtight performance. The anesthetic concentration is adjustable across a wide 0–5% range, ensuring safe and reliable operation.Precise Control with Clear Visualization：A high-accuracy oxygen flowmeter provides a fine adjustment range of 0–1000 mL/min, ideal for low-flow anesthesia in small animals. The digital readout enhances visibility and makes fine-tuning fast and intuitive.
Stable Performance & Easy Operation：Designed for fast assembly and streamlined workflow, the system enables quick and precise control of anesthesia depth to enhance animal safety and minimize operator workload.
Versatile & Highly Expandable：Suitable for inhalation anesthesia in a wide range of laboratory animals—including mice, rats, guinea pigs, rabbits, and non-human primates. Optional multi-channel expansion modules support simultaneous anesthesia for multiple animals.
System Components
Precision Anesthetic Vaporizer：The system features an original, ISO9001- and CE-certified precision vaporizer. Each unit is individually factory-calibrated to ensure consistent anesthetic output that remains unaffected by changes in temperature, humidity, or pressure. This uniform vapor concentration enhances reliability and improves overall animal safety.

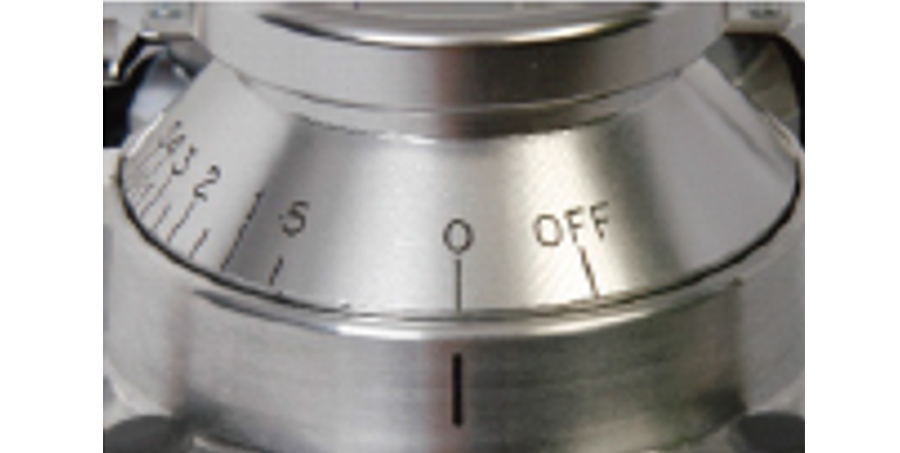

Adjustable Vapor Concentration

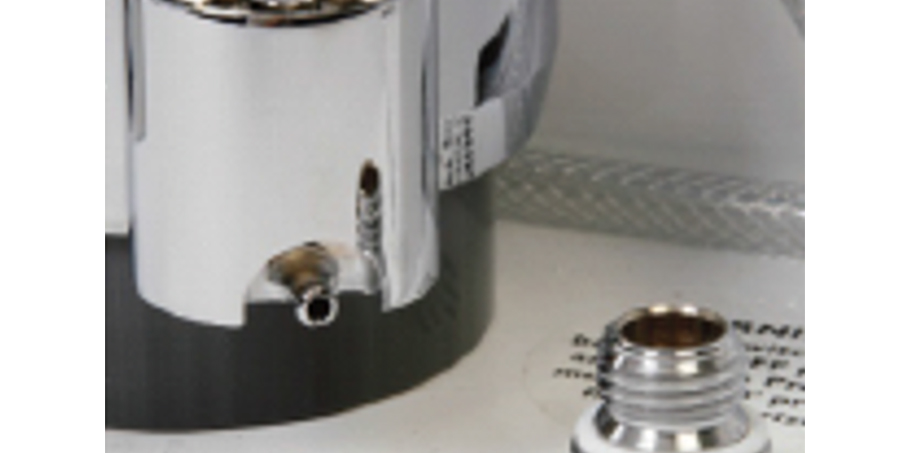

Safe Filling & Draining of Anesthetic Agents

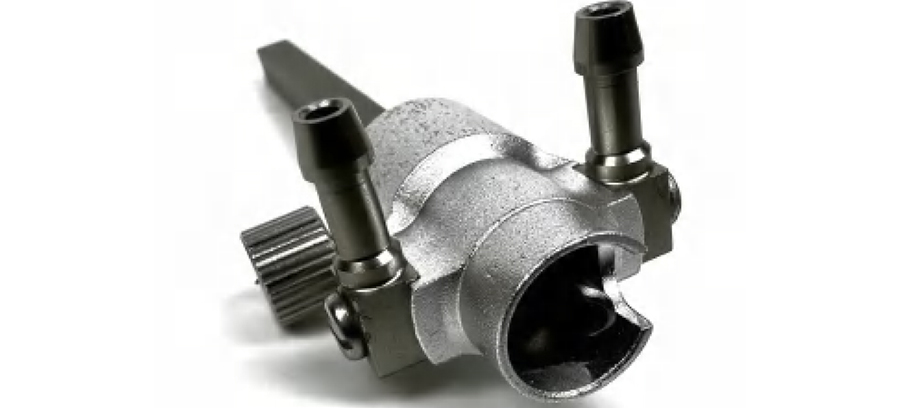

Anesthesia Delivery Components：The induction chamber is made from transparent acrylic, offering a lightweight yet durable structure that allows researchers to easily observe mice and rats throughout the induction process. The ergonomically contoured rodent anesthesia mask fits the animal’s facial profile, significantly reducing anesthetic gas leakage.

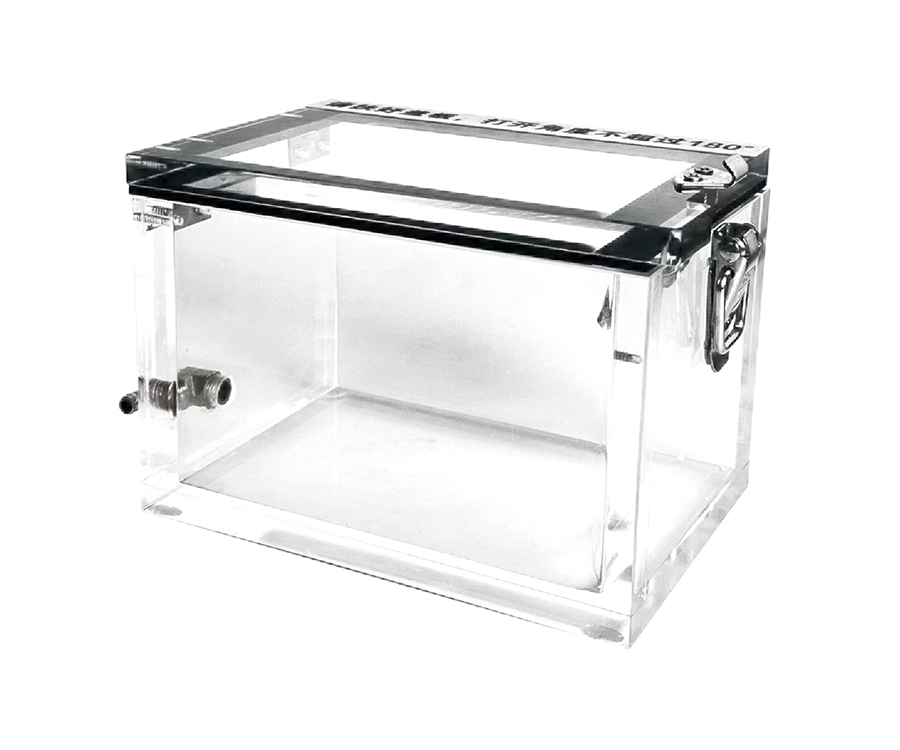

Induction Anesthesia

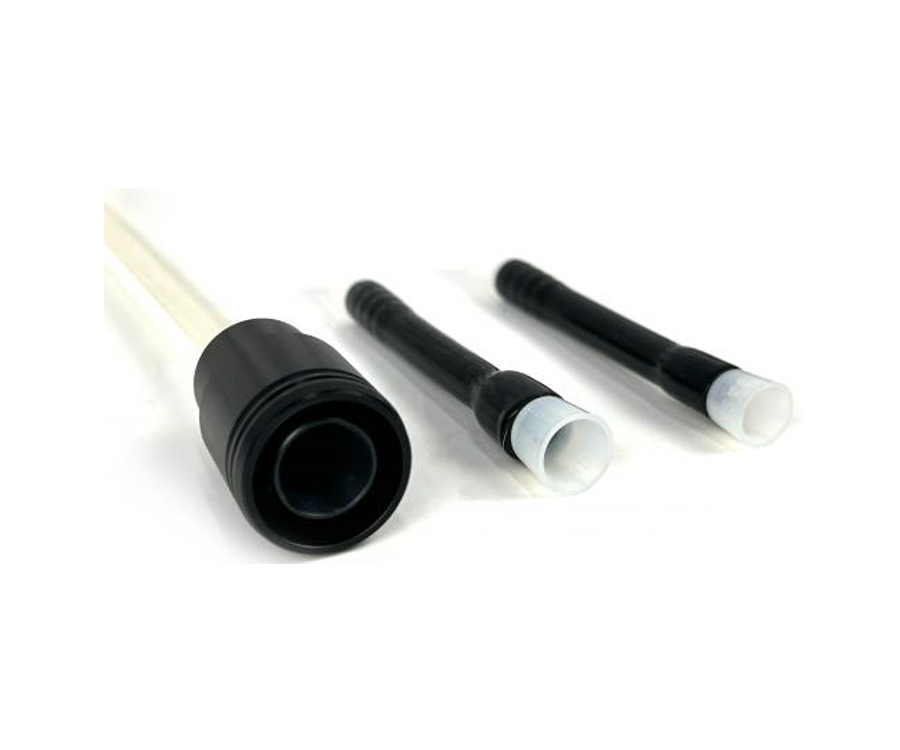

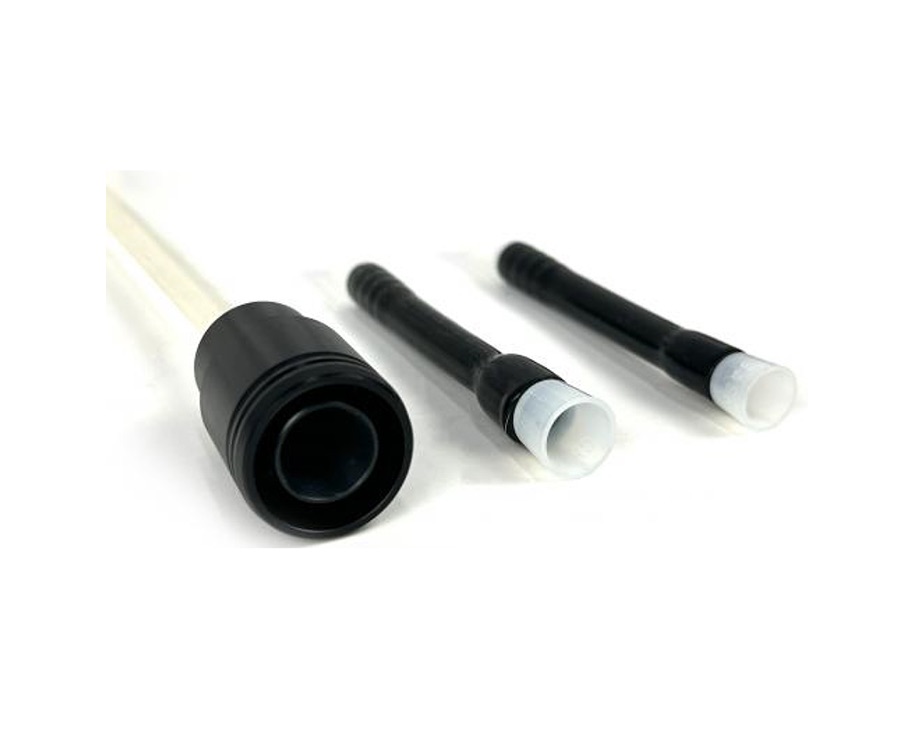

Single- or Dual-Level Maintenance Anesthesia
Waste-Gas Scavenging System：To maintain a safe laboratory environment and minimize exposure to anesthetic exhaust, the system includes dedicated waste-gas scavenging pathways for both induction anesthesia and maintenance anesthesia, effectively capturing waste gases at each stage of the procedure.

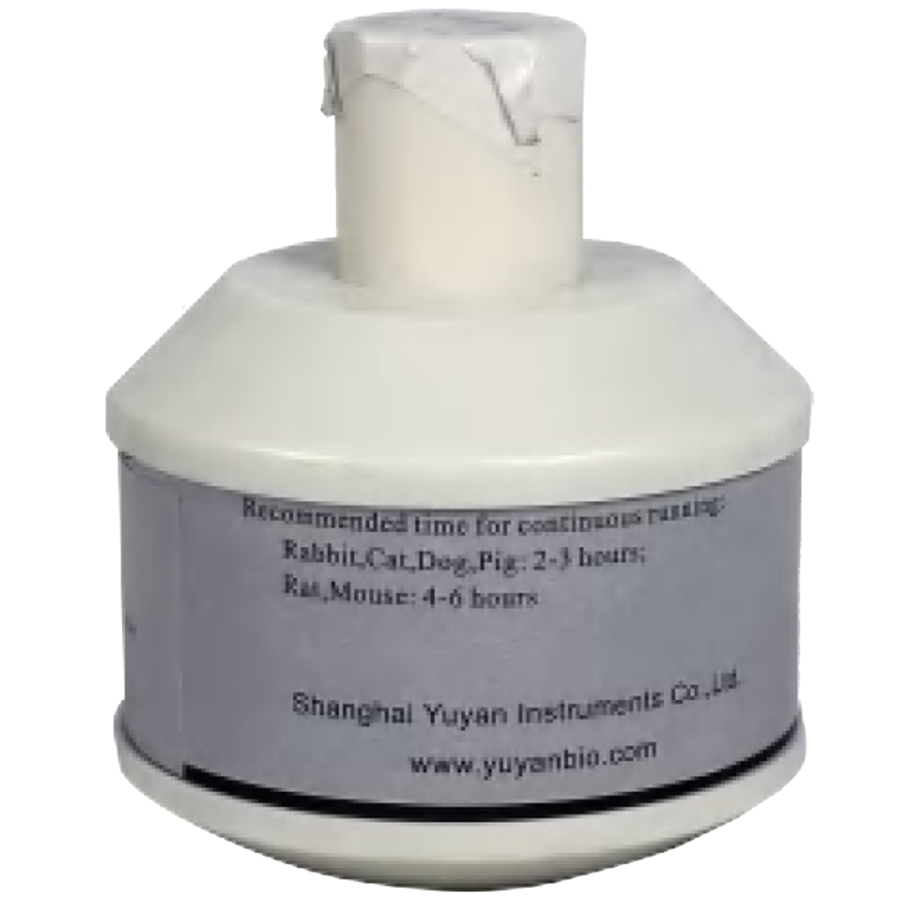

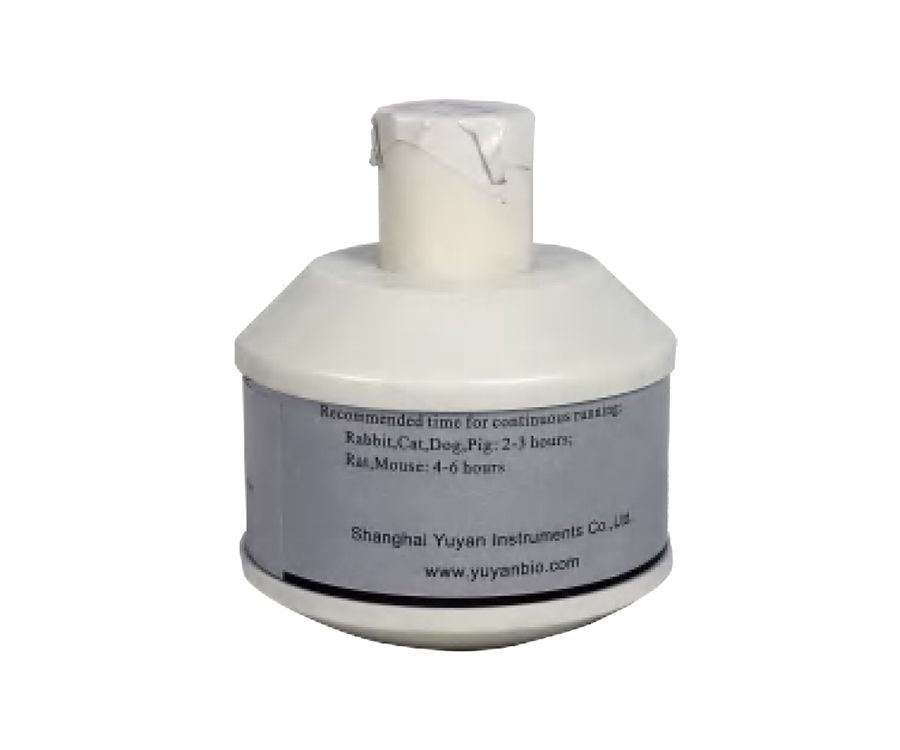

Anesthetic Waste-Gas Scavenging Canister
Anesthetic Waste-Gas Scavenging Fan
System Expansion Capabilities：The standard configuration includes a single-channel setup, but the system can be expanded to two to five channels using optional flowmeter modules. For enhanced environmental protection, the maintenance anesthesia circuit can be upgraded with an active waste-gas scavenging system, further improving exhaust removal efficiency.
Multi-Channel Flowmeter

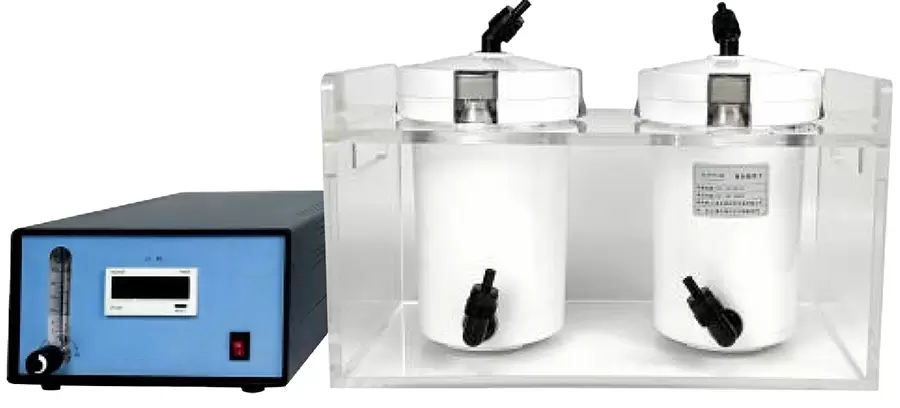

Active Waste-Gas Scavenging System
Technical Specifications
| Item | Specification |
|---|---|
| Applicable Animal Weight | 10 g – 10 kg |
| Isoflurane Output Concentration | 0–5% |
| Isoflurane Output Accuracy | ±0.1% |
| Vaporizer Capacity | 120 mL |
| Air Pump Flow Rate | 10 L/min |
| Total Flowmeter Adjustment Range | 0.1-4L/min |
| Channel Flowmeter Adjustment Range | 0.1–1 L/min |
