Key Features

Premium Imported Vaporizer — Stable & Leak-Proof：Equipped with a high-quality imported precision vaporizer featuring advanced temperature-compensation technology, the system delivers highly accurate output (±0.1%) with exceptional stability and airtight performance. The anesthetic concentration is adjustable across a wide 0–5% range, ensuring safe and reliable operation.

Precise Control with Clear Visualization：A high-accuracy oxygen flowmeter provides a fine adjustment range of 0–1000 mL/min, ideal for low-flow anesthesia in small animals. The digital readout enhances visibility and makes fine-tuning fast and intuitive.

Stable Performance & Easy Operation：Designed for fast assembly and streamlined workflow, the system enables quick and precise control of anesthesia depth to enhance animal safety and minimize operator workload.

Versatile & Highly Expandable：Suitable for inhalation anesthesia in a wide range of laboratory animals—including mice, rats, guinea pigs, rabbits, and non-human primates. Optional multi-channel expansion modules support simultaneous anesthesia for multiple animals.

System Components

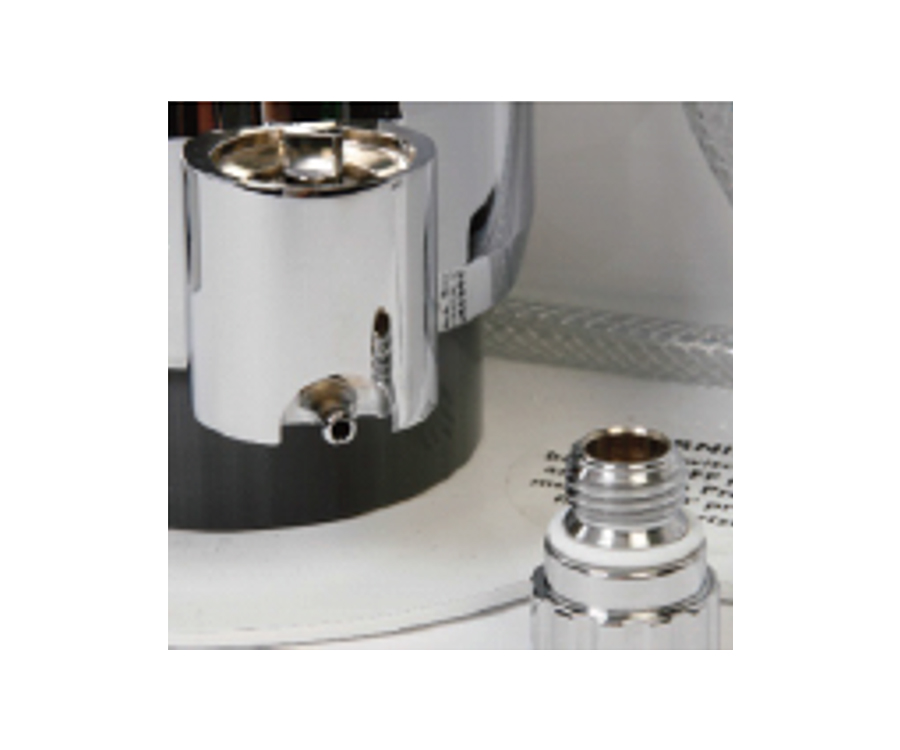

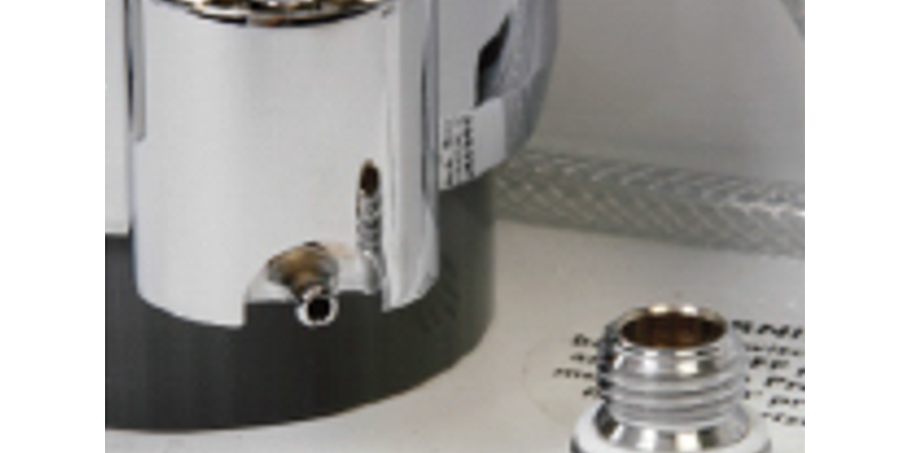

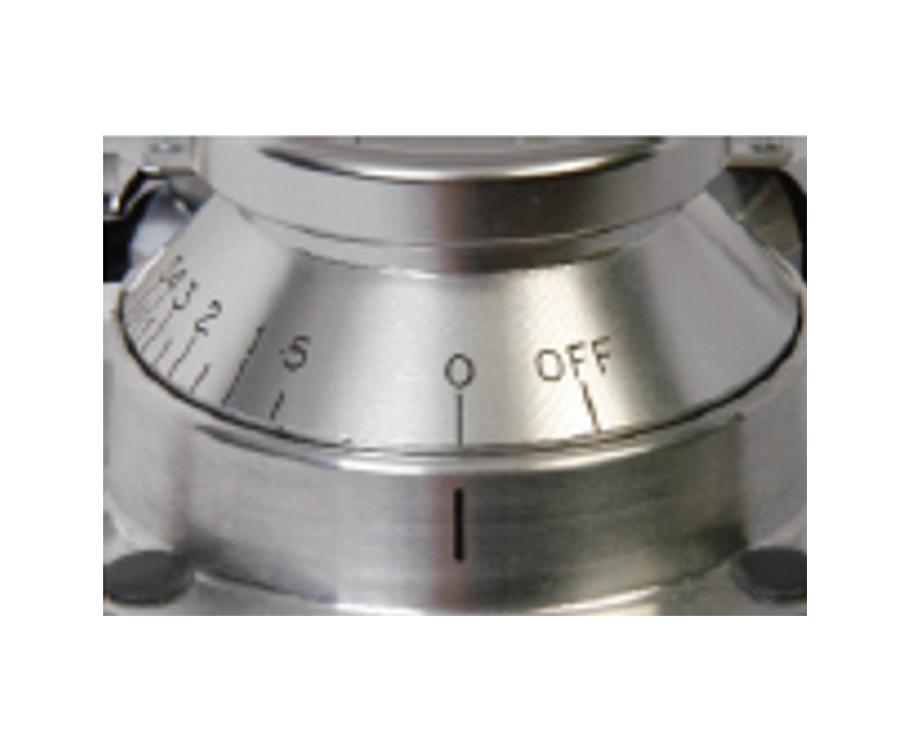

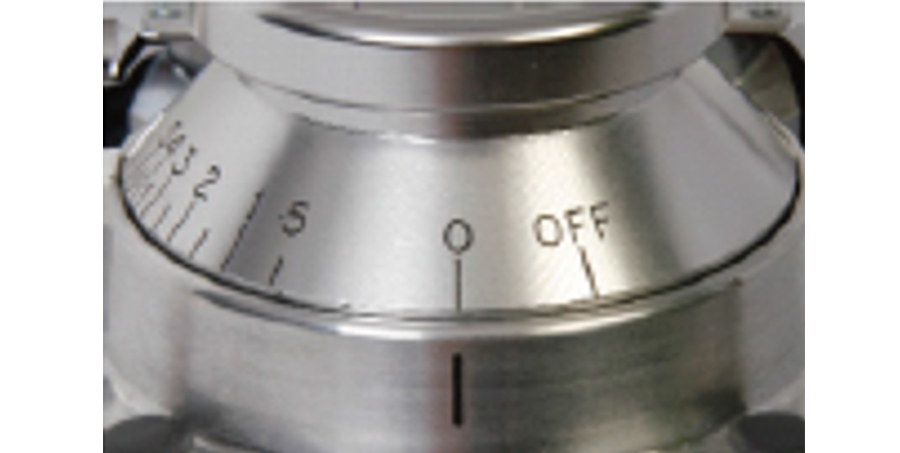

Precision Anesthetic Vaporizer：The system features an original, ISO9001- and CE-certified precision vaporizer. Each unit is individually factory-calibrated to ensure consistent anesthetic output that remains unaffected by changes in temperature, humidity, or pressure. This uniform vapor concentration enhances reliability and improves overall animal safety.

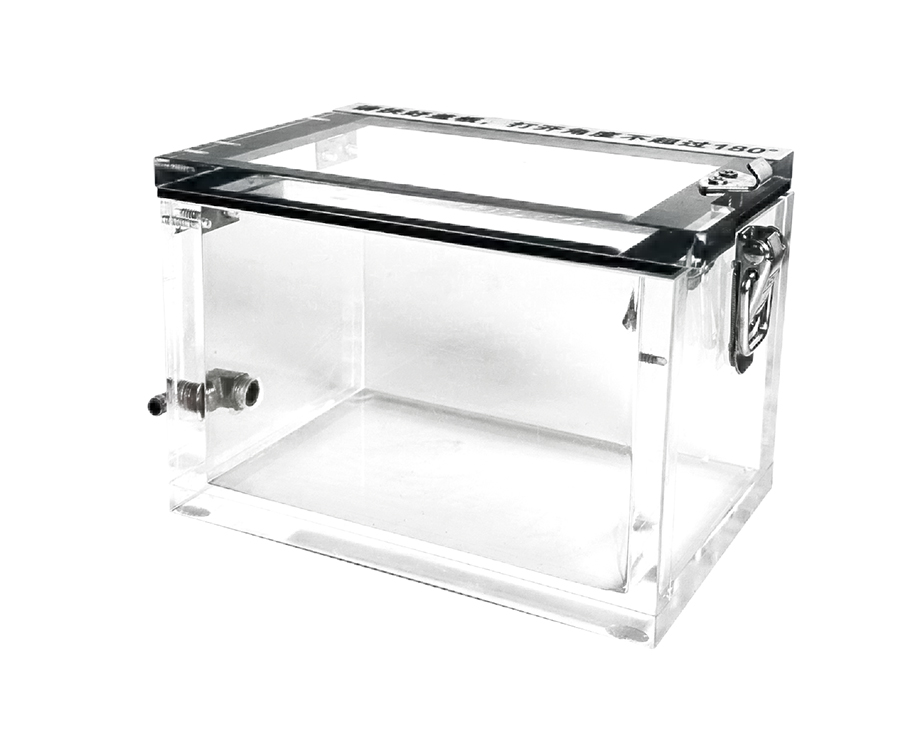

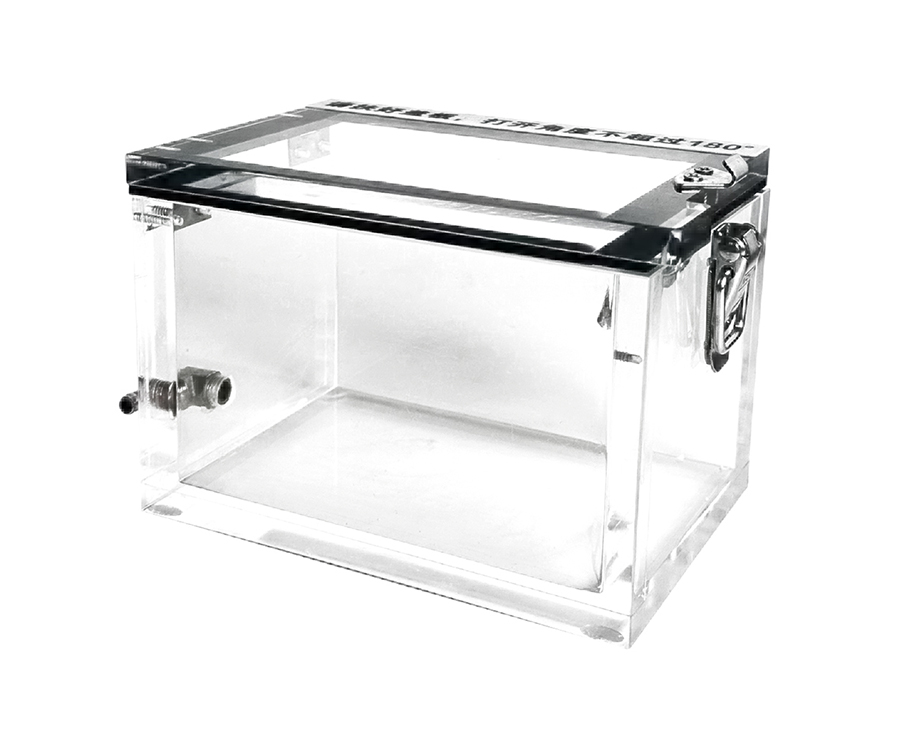

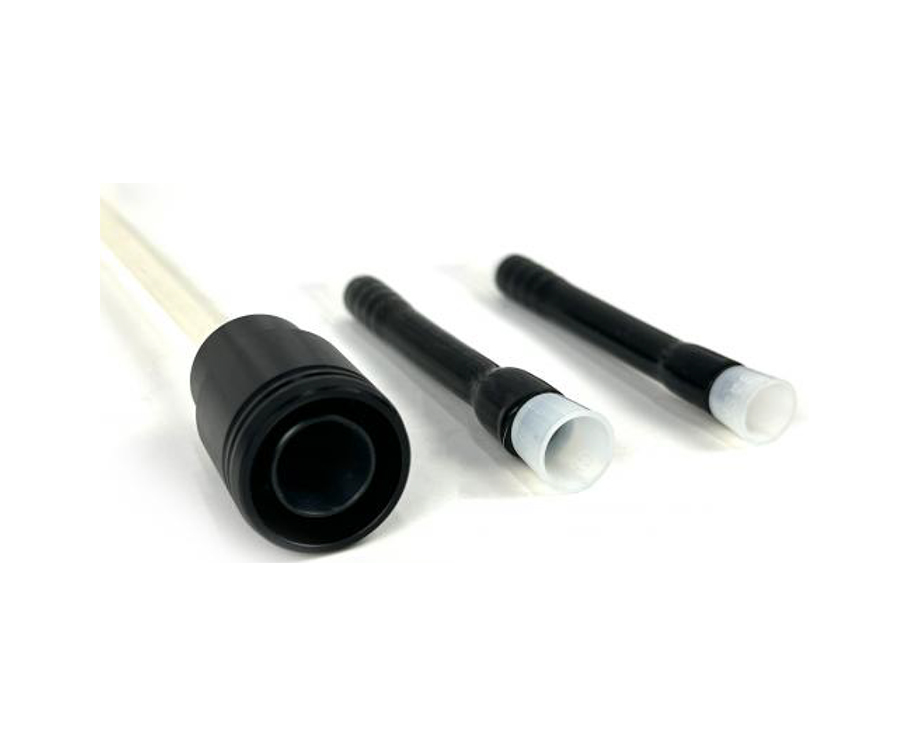

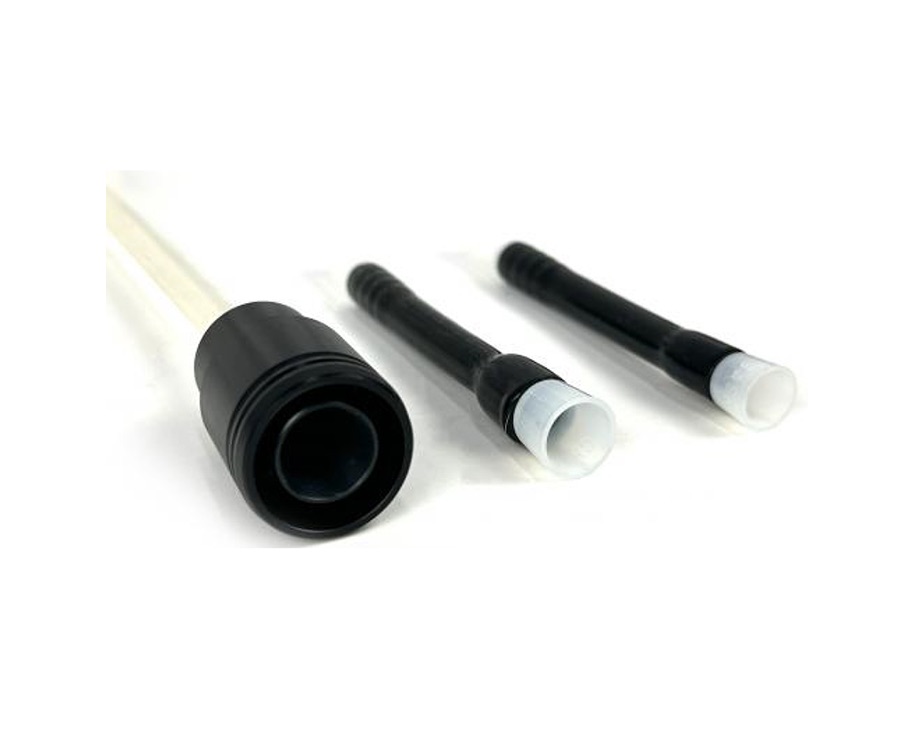

Anesthesia Delivery Components：The induction chamber is made from transparent acrylic, offering a lightweight yet durable structure that allows researchers to easily observe mice and rats throughout the induction process. The ergonomically contoured rodent anesthesia mask fits the animal’s facial profile, significantly reducing anesthetic gas leakage.

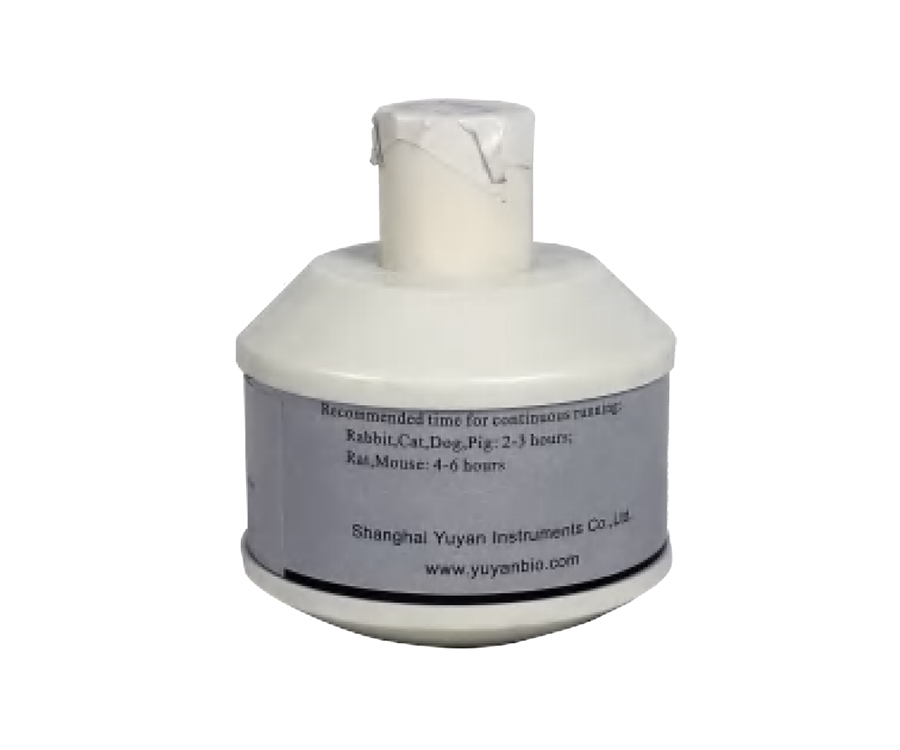

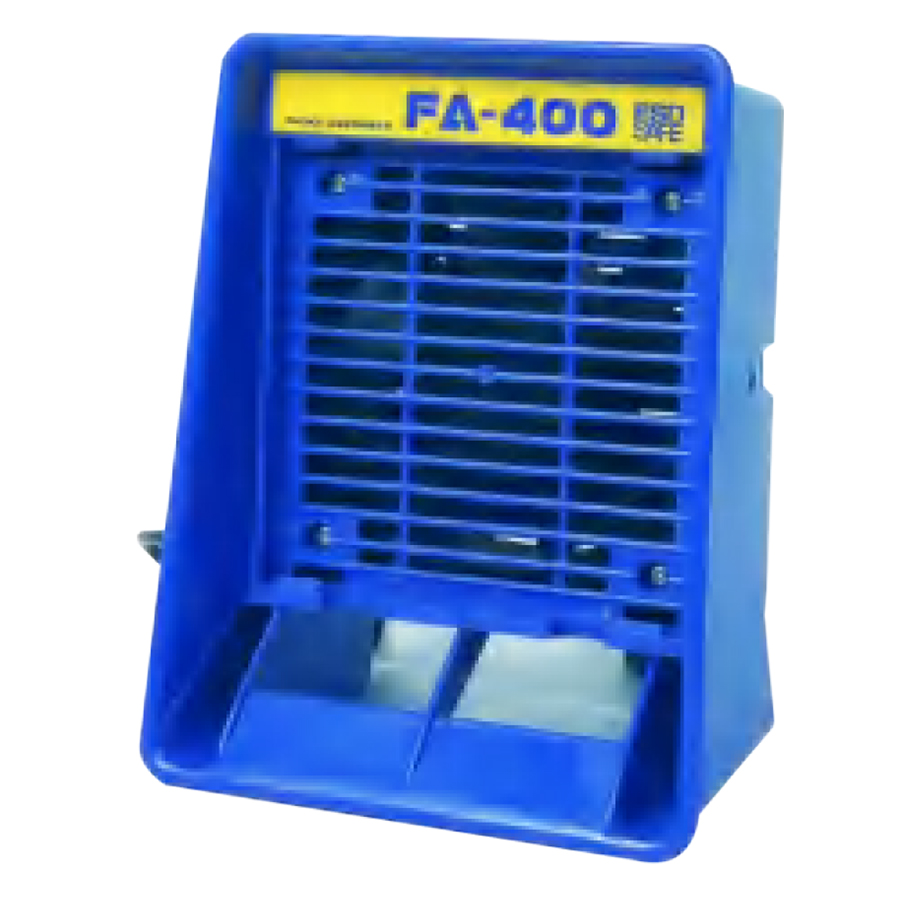

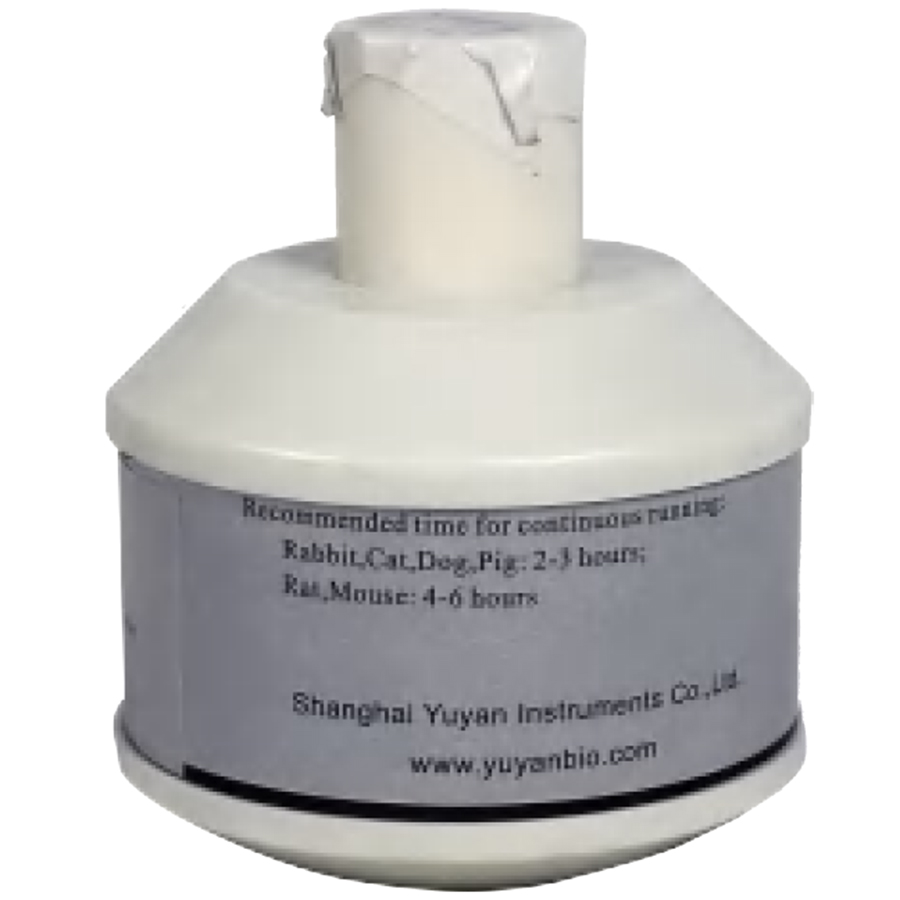

Waste-Gas Scavenging System：To maintain a safe laboratory environment and minimize exposure to anesthetic exhaust, the system includes dedicated waste-gas scavenging pathways for both induction anesthesia and maintenance anesthesia, effectively capturing waste gases at each stage of the procedure.

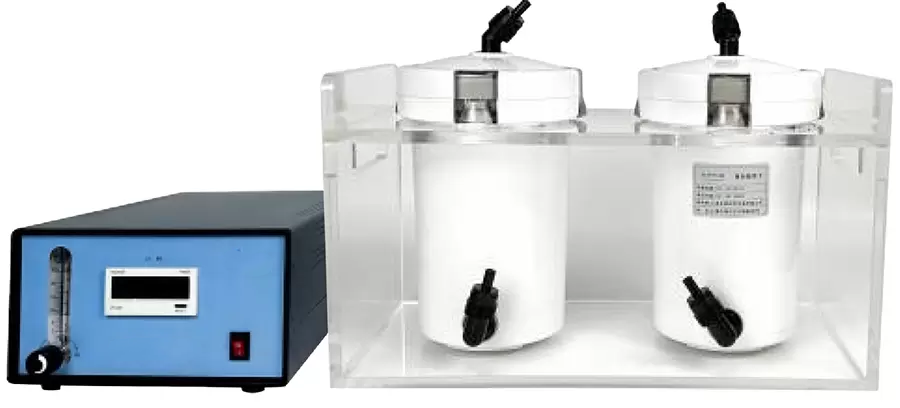

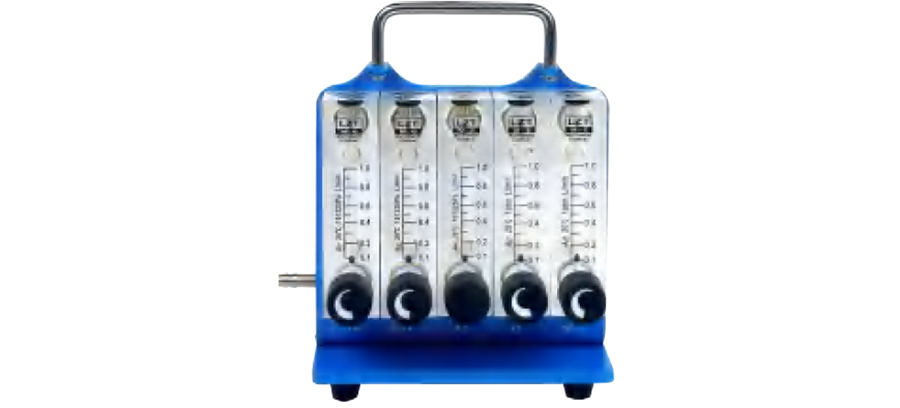

System Expansion Capabilities：The standard configuration includes a single-channel setup, but the system can be expanded to two to five channels using optional flowmeter modules. For enhanced environmental protection, the maintenance anesthesia circuit can be upgraded with an active waste-gas scavenging system, further improving exhaust removal efficiency.

Inhalation Anesthesia Solutions

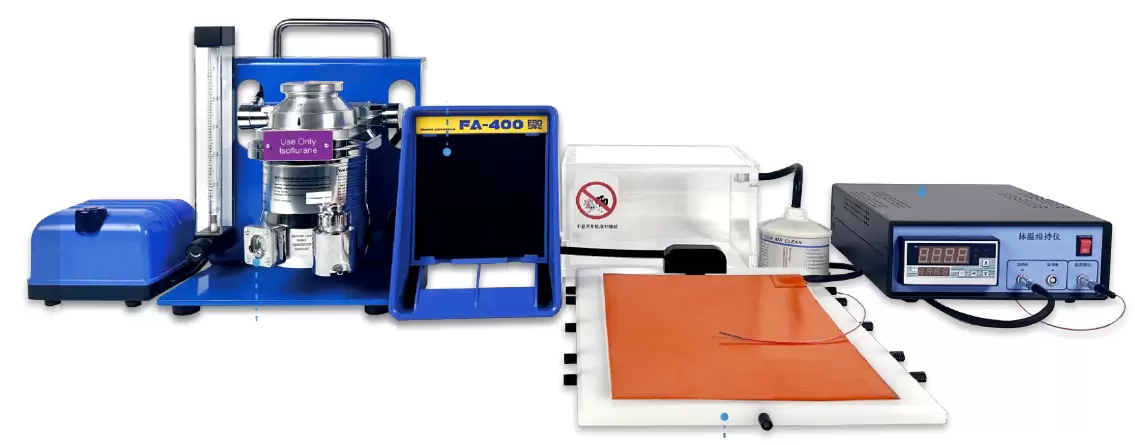

Multifunctional Surgical Solution：When paired with a temperature maintenance system, this setup provides reliable maintenance anesthesia for a wide range of surgical procedures.

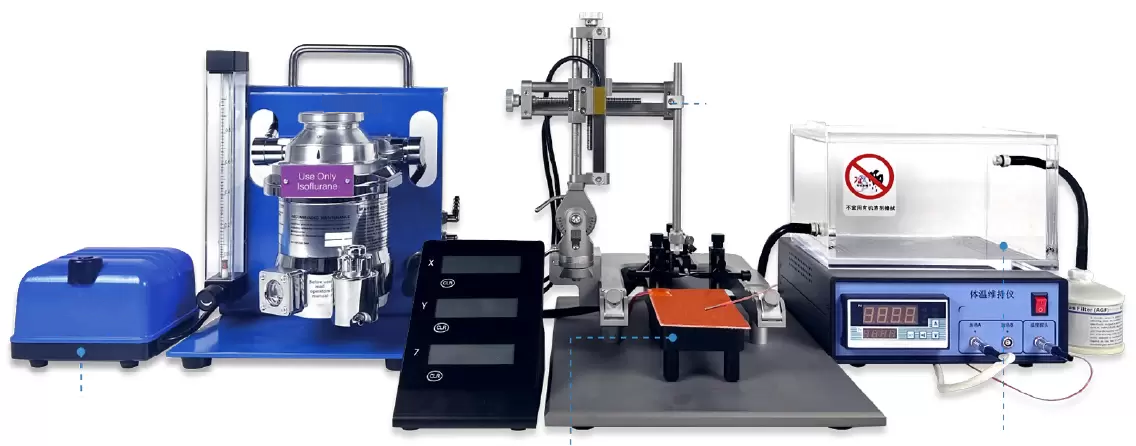

Neuroscience Application Solution：Combined with a rodent stereotaxic frame, it is ideal for neuroscience research, including model creation, targeted drug delivery, and other precision surgical applications.

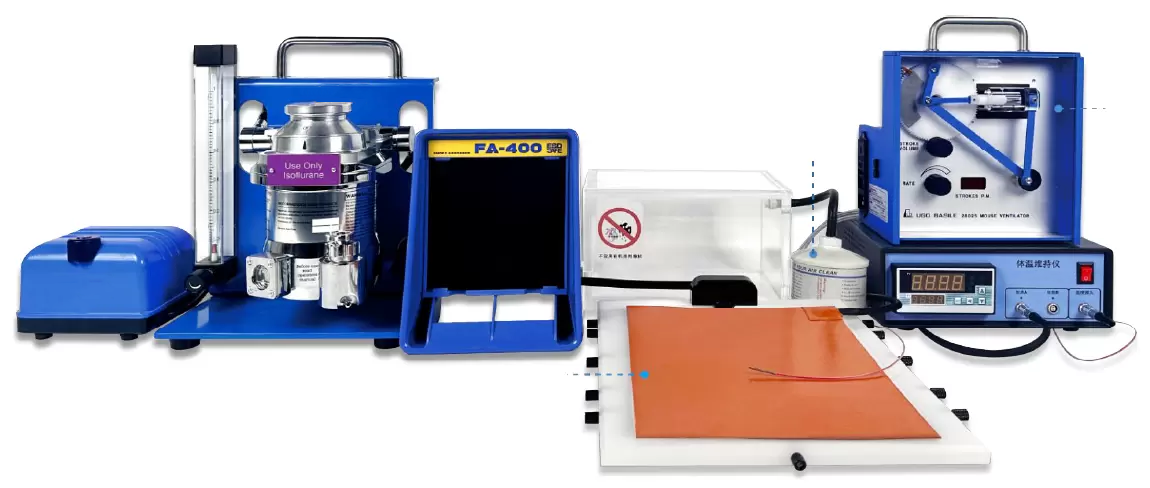

Integrated Anesthesia & Respiration Solution：When used with a small animal ventilator, the system supports physiological studies requiring synchronized respiratory control and high-quality signal acquisition.

Technical Specifications

Item	Specification
Applicable Animal Weight	10 g – 10 kg
Isoflurane Output Concentration	0–5%
Isoflurane Output Accuracy	±0.1%
Vaporizer Capacity	120 mL
Air Pump Flow Rate	10 L/min
Channel Flowmeter Adjustment Range	0.1–1 L/min

```
