EEG/EMG acquisition and analysis system
The EEG/EMG acquisition and analysis system records the EEG、EMG and acceleration signals of rats and mice during sleep, epilepsy and normal behavior mode in free activity. The data collected by the system can be combined with professional sleep or epilepsy analysis software to output the research results in related fields.
Phone Consultation
Follow us
- Introduction
- Features
- More Recommendations
Introduction
The recording and analysis of bioelectrical signals such as EEG and EMG are necessary means for neuroscience research. EEG/EMG acquisition and analysis system is an indispensable instrument for sleep disorder, cognitive disorder, epilepsy and other fields of rats and mice, which can accurately monitor and analyze EEG/EMG/acceleration/synchronous video signals of rats and mice. By monitoring animal EEG and EMG data, we can deeply study sleep patterns, seizures, learning and memory behaviors, anesthesia excitation inhibition, nerve concussion and their functions in various nervous system diseases, and provide scientific basis for the treatment of related diseases.
The acquisition and analysis system of EEG/EMG has the characteristics of real-time, safety, high efficiency, stability, automatic recording and analysis, which greatly reduces the labor intensity and improves the accuracy. The system collects the EEG of animal cortex/nucleus and the EMG of neck through special screw electrode and EEG headstage. The system amplifies and filters the signal step by step through the head-mounted preamplifier and collector to minimize the signal artifacts and obtain clean data waveforms. The system supports automatic analysis and obtains various statistical data of WAKE-NREM-REM and seizures.
The acquisition and analysis system of EEG/EMG has the characteristics of real-time, safety, high efficiency, stability, automatic recording and analysis, which greatly reduces the labor intensity and improves the accuracy. The system collects the EEG of animal cortex/nucleus and the EMG of neck through special screw electrode and EEG headstage. The system amplifies and filters the signal step by step through the head-mounted preamplifier and collector to minimize the signal artifacts and obtain clean data waveforms. The system supports automatic analysis and obtains various statistical data of WAKE-NREM-REM and seizures.
Features
Gold standard analysis method, equipped with head-mounted amplifier:EEG and EMG are recorded in an invasive way for analysis, which is highly recognized internationally; The system is equipped with a head-mounted preamplifier, which is light in weight and does not affect animal activities and monitoring.
Multi-channel acquisition supports long-term recording:The system supports multiple animals to record at the same time; Animal cages are equipped with water bottles and food troughs, which support animals to record continuously for several months.
Powerful filtering function, equipped with light control box:The recording software has high-pass/low-pass/50Hz digital filtering, which can ensure the cleanliness and stability of the signal; The light control box is universal for rats and mice, which can shield the environmental noise and control the lighting/darkness regularly.
Integrated acceleration measurement and synchronous video acquisition:The system can synchronously record the X/Y/Z acceleration and activity video of animals, and improve the accuracy of sleep and seizure analysis.
Recording of signals:After the operation, apply dental cement to the headmount and electrode for sealing and fixing. Animals are placed in cages for short-term or long-term monitoring.
Professional analysis:According to the needs, import the collected EEG and EMG signal files (EDF format) into professional sleep software, seizure software or Matlab for analysis.
ER-9000 includes acquisition system, synchronous video module and light control box.
ER-8800 includes acquisition system and light control box, not include synchronous video module.
Multi-channel acquisition supports long-term recording:The system supports multiple animals to record at the same time; Animal cages are equipped with water bottles and food troughs, which support animals to record continuously for several months.
Powerful filtering function, equipped with light control box:The recording software has high-pass/low-pass/50Hz digital filtering, which can ensure the cleanliness and stability of the signal; The light control box is universal for rats and mice, which can shield the environmental noise and control the lighting/darkness regularly.
Integrated acceleration measurement and synchronous video acquisition:The system can synchronously record the X/Y/Z acceleration and activity video of animals, and improve the accuracy of sleep and seizure analysis.
Product composition

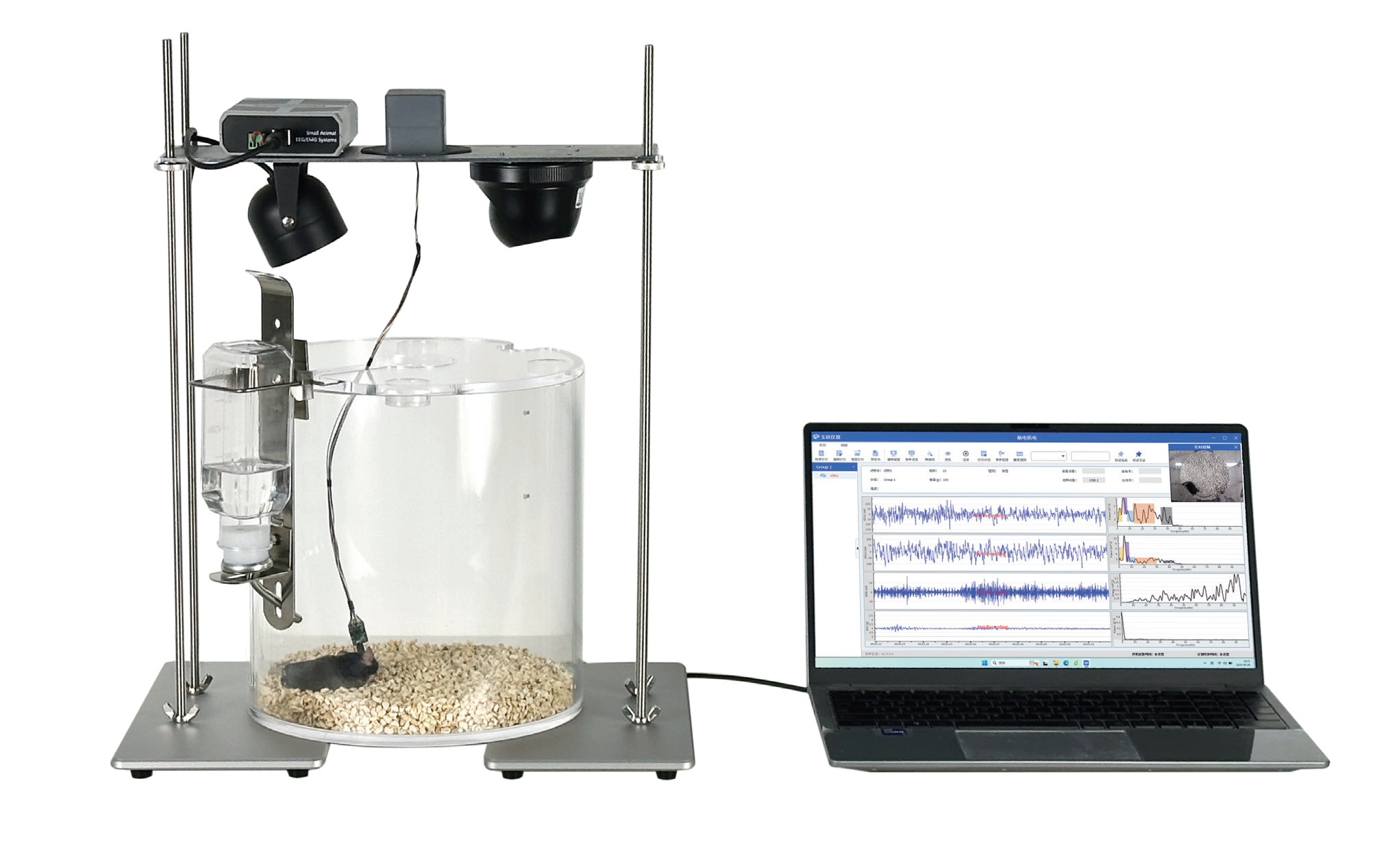

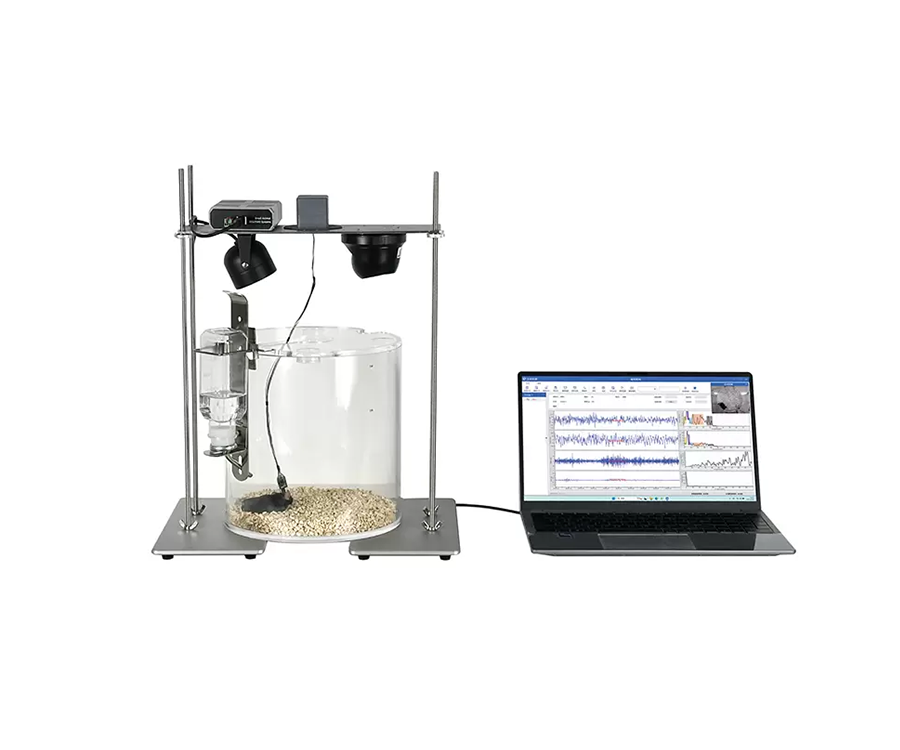

Main components of the system

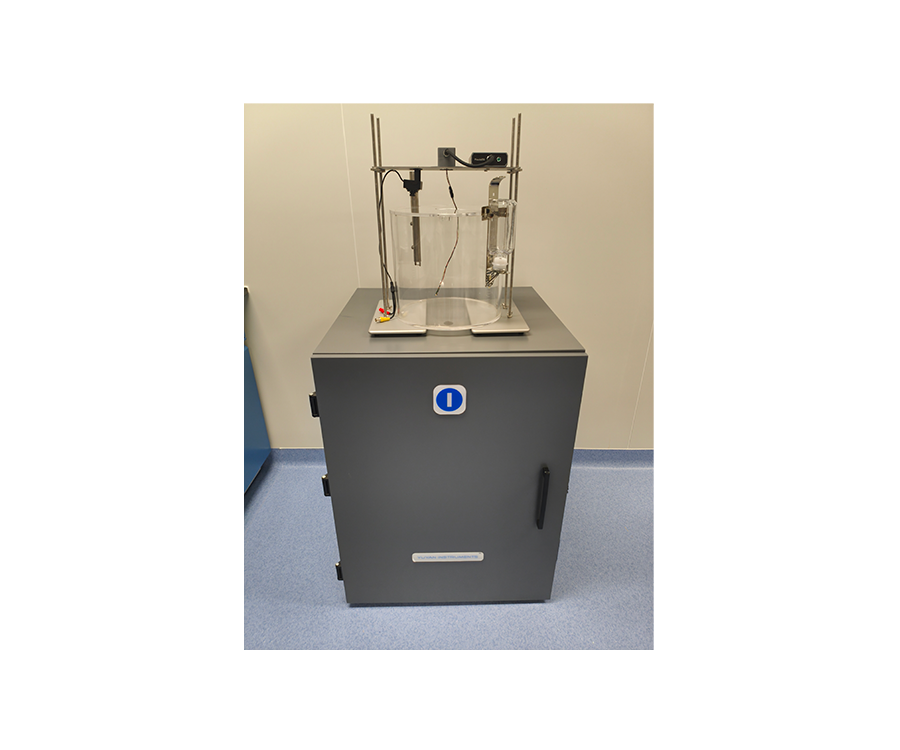

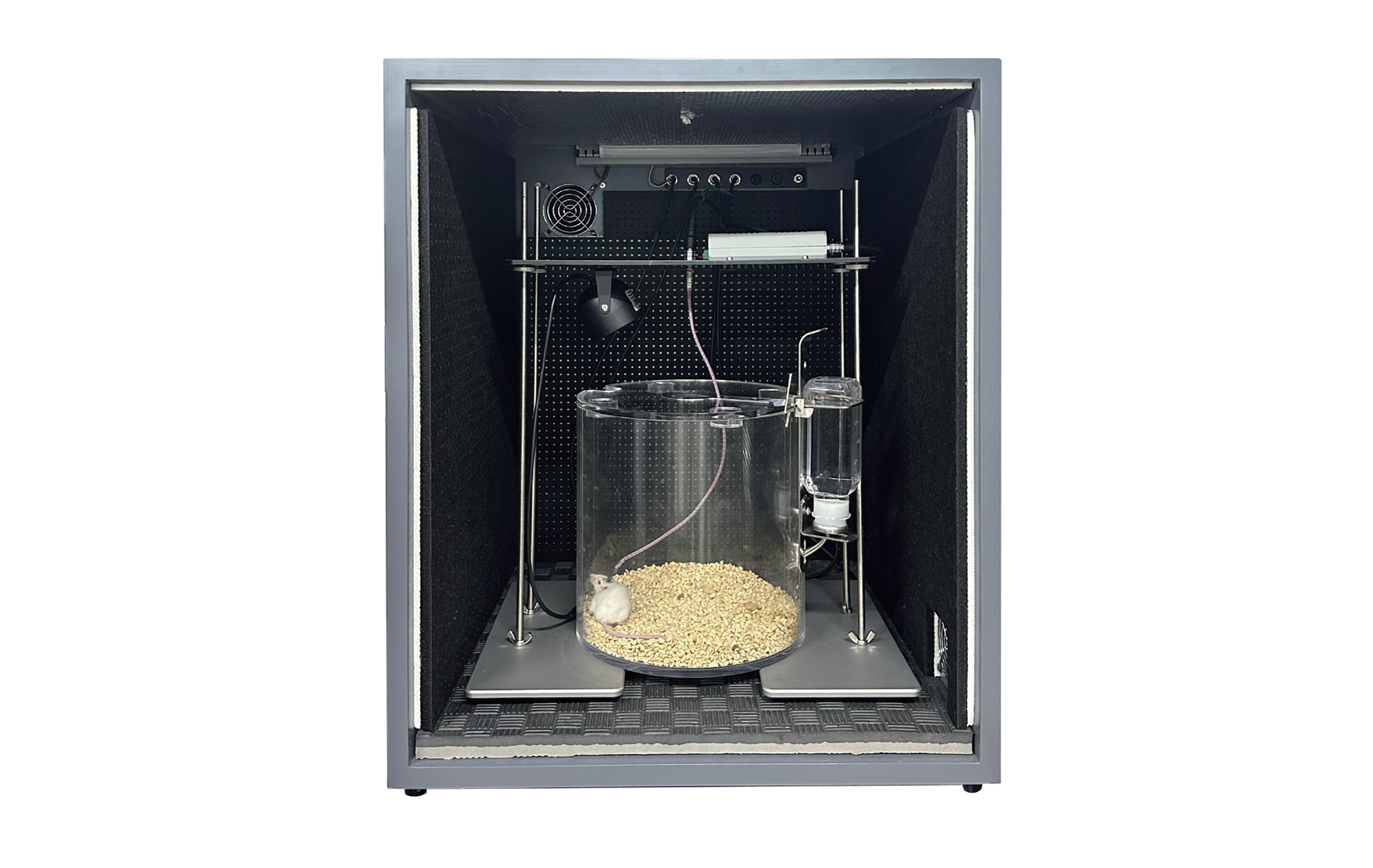

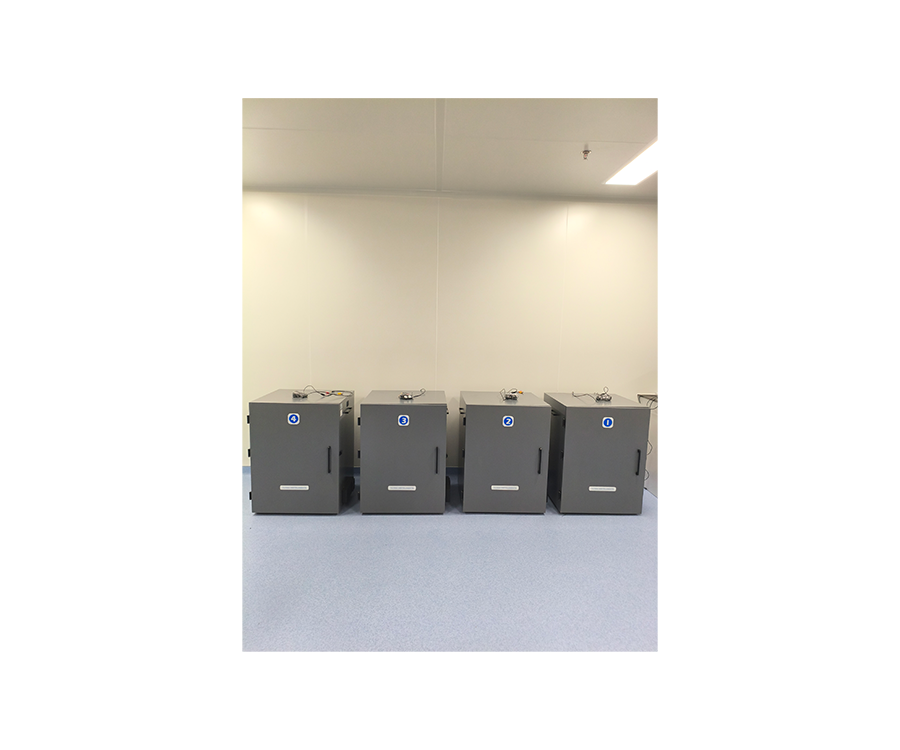

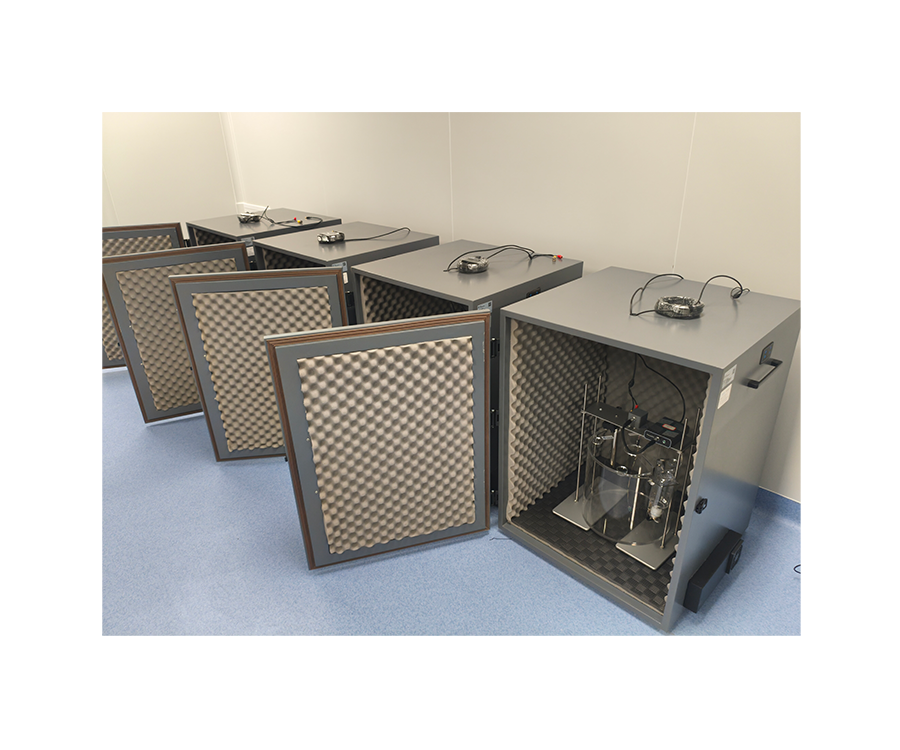

Recording in electromagnetic shielding box

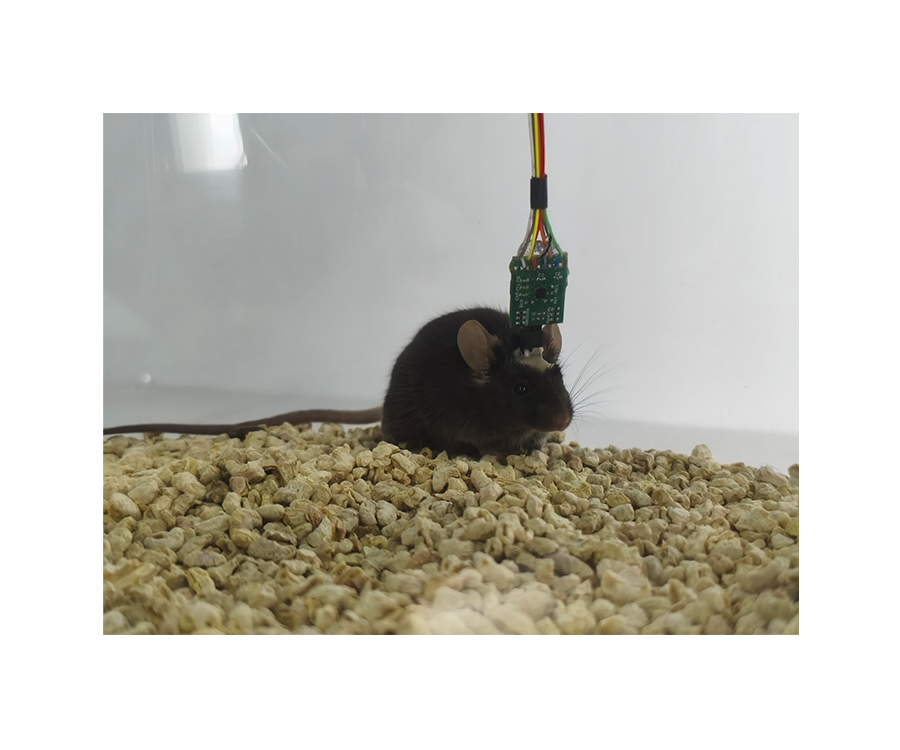

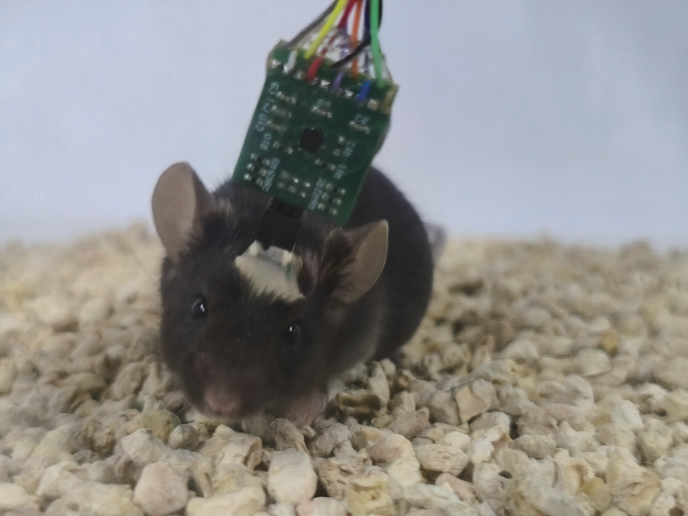

Preamplifier and headstage

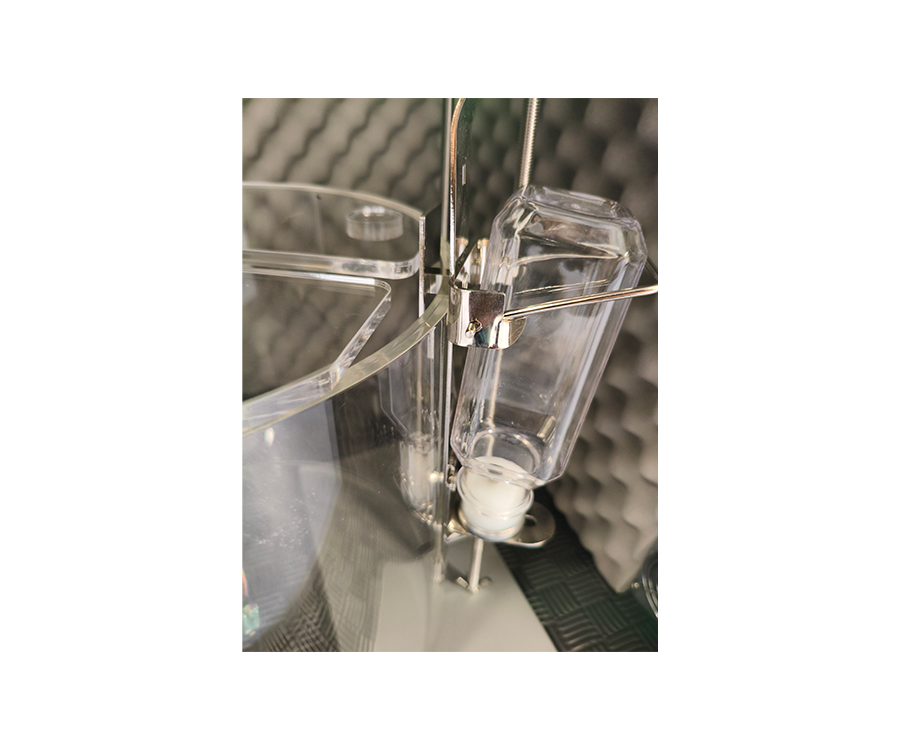

Animal drinking water and diet

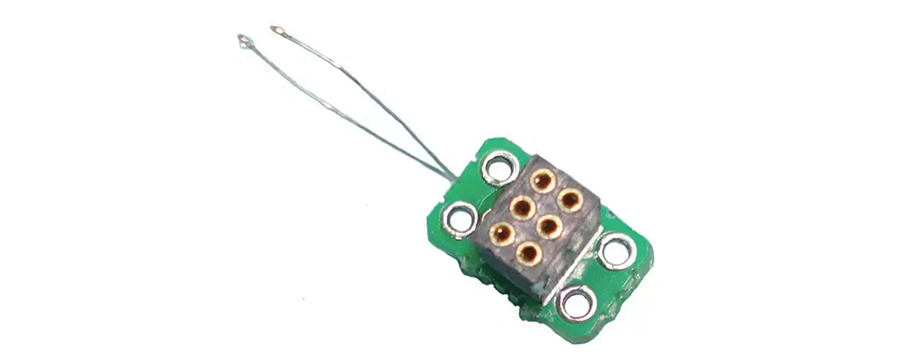

Rat headstage

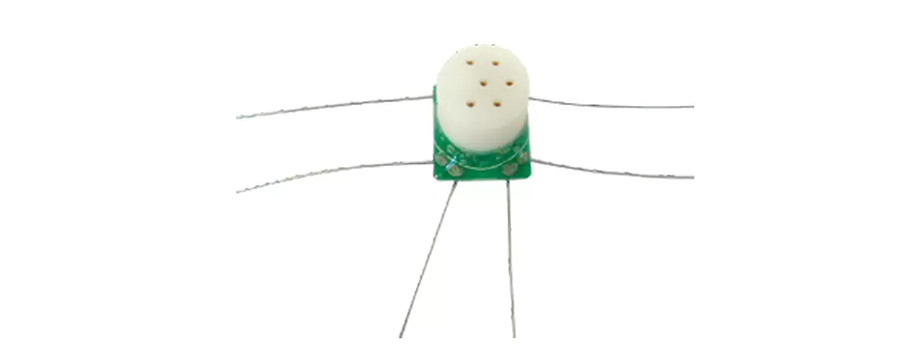

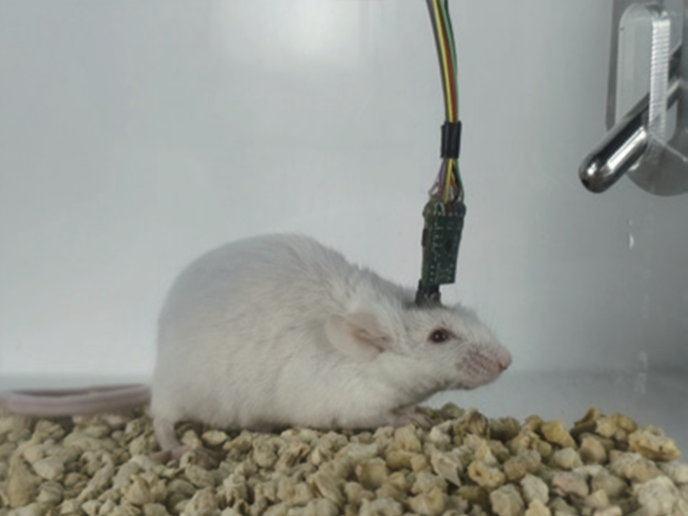

Mouse headstage
Experimental Process
Animal surgery:Before collecting signals, the headmount is fixed on the skull through screw electrodes. EEG signal is conducted by contacting with cortex through screw electrode, and EMG signal is conducted by burying stainless steel lead under trapezius muscle.Recording of signals:After the operation, apply dental cement to the headmount and electrode for sealing and fixing. Animals are placed in cages for short-term or long-term monitoring.
Professional analysis:According to the needs, import the collected EEG and EMG signal files (EDF format) into professional sleep software, seizure software or Matlab for analysis.
Ordering Information
| Item | Applicable | Animal Channel Number |
|---|---|---|
| ER-9000-MRx | Rats and mice | x (x≥1) |
| ER-9000-Rx | Rats | x (x≥1) |
| ER-9000-Mx | Mice | x (x≥1) |
| ER-8800-MRx | Rats and mice | x (x≥1) |
| ER-8800-Rx | Rats | x (x≥1) |
| ER-8800-Mx | Mice | x (x≥1) |
ER-9000 includes acquisition system, synchronous video module and light control box.
ER-8800 includes acquisition system and light control box, not include synchronous video module.
Optional
| Item | Analysis Results |
|---|---|
| Sleep analysis software | The duration and proportion of WAKE/NREM/REM phase, the number of sleep-wake transitions, spectrum density map, heat map, Hypnogram, etc. |
| Seizure analysis software | Average seizure duration, seizure interval, seizure times, spectrum |
