Cigarette Smoke Exposure System
Cigarette smoke exposure system can continuously generate and supply smoke, so that experimental animals can keep inhalation exposure, which is suitable for the establishment of respiratory diseases models.
Phone Consultation
Follow us
- Introduction
- Features
- More Recommendations
Introduction
Semi-automatic cigarette smoke exposure system is a semi-automatic, efficient and continuous smoke generator. 20 cigarettes can be loaded in the cigarette loading guide rail at a time, and the cigarettes are loaded by manual propulsion and lit. It is mainly used in the research of basic medicine and clinical treatment of COPD, chronic bronchitis, respiratory infection, asthma, lung cancer and other respiratory diseases and cardiovascular diseases.
Features
Safe and reliable:Equipped with active waste gas recovery system, with circulating ventilation and adjustable air volume ventilation design, to ensure experimental safety and stable flue gas environment.
Long-term high efficiency:Animal exposure experiments can be carried out in batches, and at the same time, animal welfare can be taken into account to support animals to live in cages for a long time.
Variety of choices:Exposure box provides a variety of sizes and materials to choose from, and can also be customized as needed to meet different experimental needs.
Manually controllable:Cigarettes are loaded and started manually in the whole process, which can control the progress of the experiment in real time and terminate the experiment flexibly.
Waste gas recovery device: negative pressure design, multi-layer filter structure, harmless treatment of cigarette smoke discharged from exposure box, activated carbon and rosin powder as filter media, easy replacement of consumables, ensuring the safety of operators.
Exposure box: the strong reflux fan in the exposure box makes the smoke mix in the box timely and fully, and the smoke concentration contacted by each experimental animal is consistent. Exposure boxes are available in different materials and sizes.
Long-term high efficiency:Animal exposure experiments can be carried out in batches, and at the same time, animal welfare can be taken into account to support animals to live in cages for a long time.
Variety of choices:Exposure box provides a variety of sizes and materials to choose from, and can also be customized as needed to meet different experimental needs.
Manually controllable:Cigarettes are loaded and started manually in the whole process, which can control the progress of the experiment in real time and terminate the experiment flexibly.
Composition
Cigarette generator: the cigarette loading guide of the smoke generator can load up to 20 cigarettes at a time, and the flow of cigarette smoke is controlled by the flow control component by electronic ignition, so as to ensure that the smoke concentration in the exposure box is maintained in a suitable range.Waste gas recovery device: negative pressure design, multi-layer filter structure, harmless treatment of cigarette smoke discharged from exposure box, activated carbon and rosin powder as filter media, easy replacement of consumables, ensuring the safety of operators.
Exposure box: the strong reflux fan in the exposure box makes the smoke mix in the box timely and fully, and the smoke concentration contacted by each experimental animal is consistent. Exposure boxes are available in different materials and sizes.

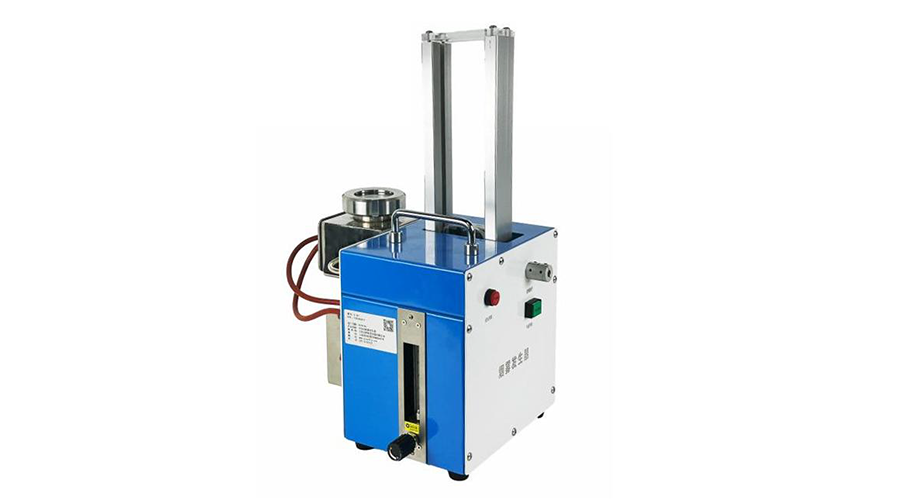

Cigarette generator

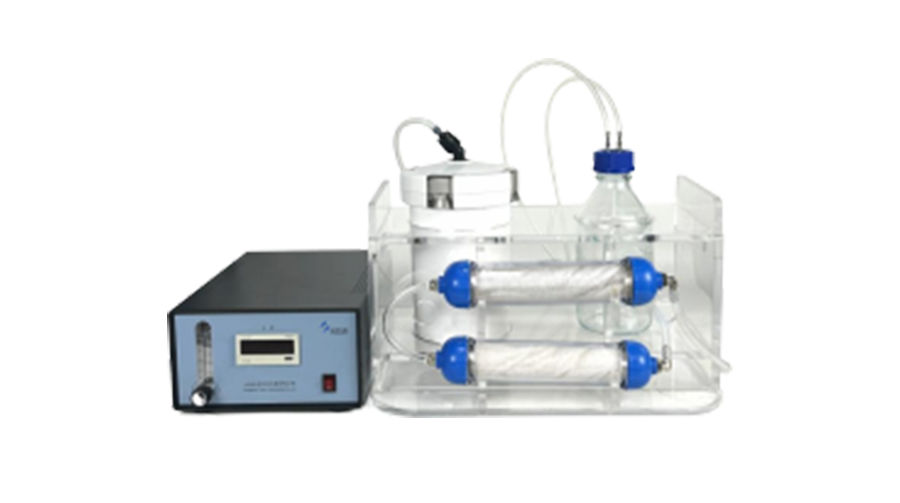

Waste gas recovery device

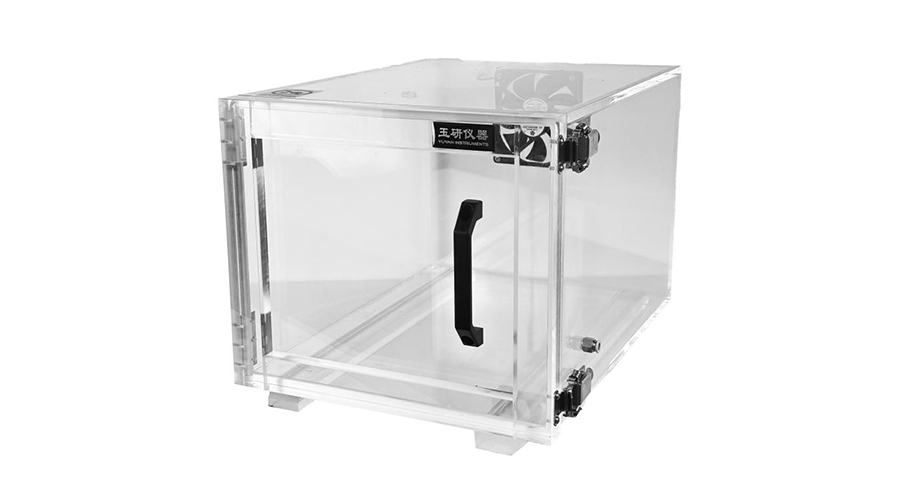

Acrylic box

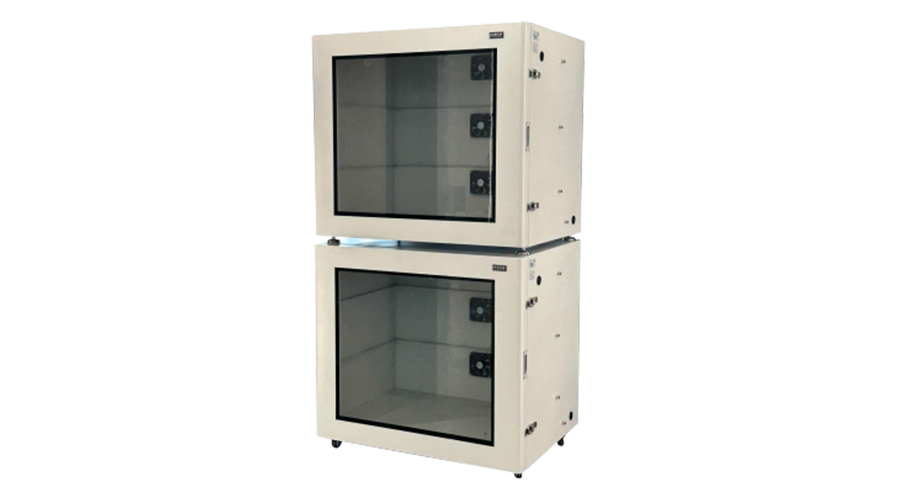

Stainless steel box
Specifications
| Parameter | Specification |
|---|---|
| Air Flow | 0-500 L/h |
| Burning Time per Cigarette | 10-50 s |
| Guide Cigarette Capacity | 20 cigarettes |
| Rated Power | 200 W |
