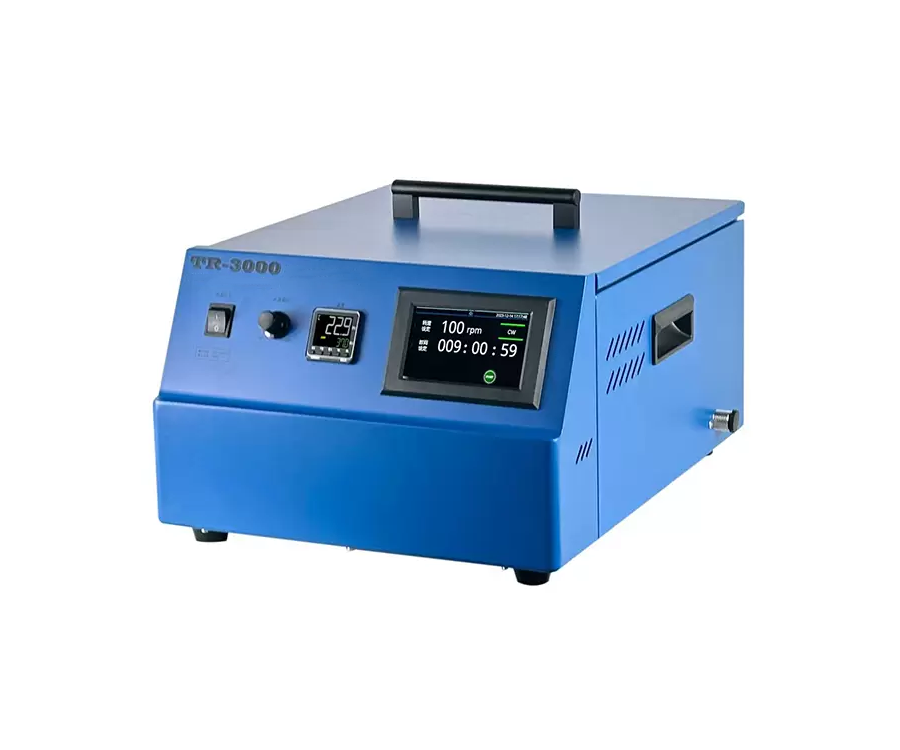

Franz Cell
The Franz Cell accurately measures the cumulative permeation amount and absorption rate of drugs across membranes, predicting the kinetic process of drug molecules entering the body via the skin or other media.
Phone Consultation
Follow us
- Introduction
- Features
- More Recommendations
Introduction
Specifically designed for vertical transdermal tests, the Franz Cell is suitable for penetration experiments of solid and semi-solid substances (e.g., ointments, patches) through human skin, animal skin, skin-like materials, corneas, and other membranes
Features
Precise and Stable Temperature Control:Temperature control accuracy reaches 0.20℃, with an adjustable range from room temperature to 70℃.
Stirring and Timing Function:Rotation speed ranges from 0–999 rpm; freely programmable end time available.
Multiple Diffusion Cell Specifications:Franz Cell optional 2.2 mL, 8 mL, and 20 mL vertical diffusion cells are optional (custom sizes supported). Specialized cells for cornea or nail research are also provided.
Exquisite Craftsmanship and Durability:The main body and internal components are made of stainless steel, ensuring a sturdy structure. Independent control of stirring and heating systems facilitates easy operation.
Stirring and Timing Function:Rotation speed ranges from 0–999 rpm; freely programmable end time available.
Multiple Diffusion Cell Specifications:Franz Cell optional 2.2 mL, 8 mL, and 20 mL vertical diffusion cells are optional (custom sizes supported). Specialized cells for cornea or nail research are also provided.
Exquisite Craftsmanship and Durability:The main body and internal components are made of stainless steel, ensuring a sturdy structure. Independent control of stirring and heating systems facilitates easy operation.
Specifications
| Parameter | Specification |
|---|---|
| Number of channels | 12 |
| Speed control accuracy | 1 rpm |
| Speed consistency of each channel | ≤0.5% |
| Rotation mode | Forward rotation, reverse rotation |
| Temperature control accuracy | 0.2℃ |
Transdermal Cell
| Model | Volume | Transdermal Area (cm²) | Applicable Drug Loading Dose |
|---|---|---|---|
| TR-0010 | 2 mL | 0.79 cm² | Low |
| TR-0025 | 7.8 mL | 1.91 cm² | Medium |
| TR-0030 | 8 mL | 3.24 cm² | Medium |
| TR-0035 | 18 mL | 4.14 cm² | High |
| TR-0115 | 5.4 mL | 0.57 cm² | Cornea |
| TR-0116 | 5 mL | 0.79 cm² | Nail |
| TR-0010-X | Vertical type; receiver cell volume, caliber and transdermal area determined per customized specifications | ||
| TR-0115-X | Corneal type; receiver cell volume, caliber and transdermal area determined per customized specifications | ||
