Small Animal Sleep Deprivation System
Animal sleep deprivation model is an important means to study sleep regulation mechanism. Sleep deprivation system can effectively eliminate the sleep state of animals by controlling the rotating rod to sweep the bottom of the cage and gently pushing the object to wake up, which is the preferred scheme for constructing sleep deprivation model.
Phone Consultation
Follow us
- Introduction
- Features
- More Recommendations
Introduction
Small Animal Sleep Deprivation System is a special tool for modeling sleep interference and sleep deprivation in rats and mice. The equipment can control the rotation of the rod to drive away animals , and complete the automatic sleep deprivation task. The rod rotates gently and does not cause damage to animals. Above it is equipped with a cage(rat or mouse), which can keep animals for a long time. The equipment can be used for sleep research, time difference research and intermittent sleep model simulation.
Features
Obvious deprivation effect:Animals are constantly moving when the equipment is running, and the duration and intensity of deprivation can be set without personnel on duty.
Diversified working modes:The equipment has four working modes: continuous, timed, intermittent and clockwise/counterclockwise. The multi-mode design can prevent animals from getting used to a rotation mode and sleep adaptation.
Height of the rod can be adjusted:The rod can be freely adjusted at the height of 2 cm, 3 cm and 4 cm, and the lower position of the rod can reduce the waste of padding and prevent animals from digging holes.
Large-volume, closed feeding cage:Multiple rats or mice can be placed in the cage for experiments at the same time. The cage is equipped with diet and drinking water components, and animals can be kept for a long time.
Diversified working modes:The equipment has four working modes: continuous, timed, intermittent and clockwise/counterclockwise. The multi-mode design can prevent animals from getting used to a rotation mode and sleep adaptation.
Height of the rod can be adjusted:The rod can be freely adjusted at the height of 2 cm, 3 cm and 4 cm, and the lower position of the rod can reduce the waste of padding and prevent animals from digging holes.
Large-volume, closed feeding cage:Multiple rats or mice can be placed in the cage for experiments at the same time. The cage is equipped with diet and drinking water components, and animals can be kept for a long time.

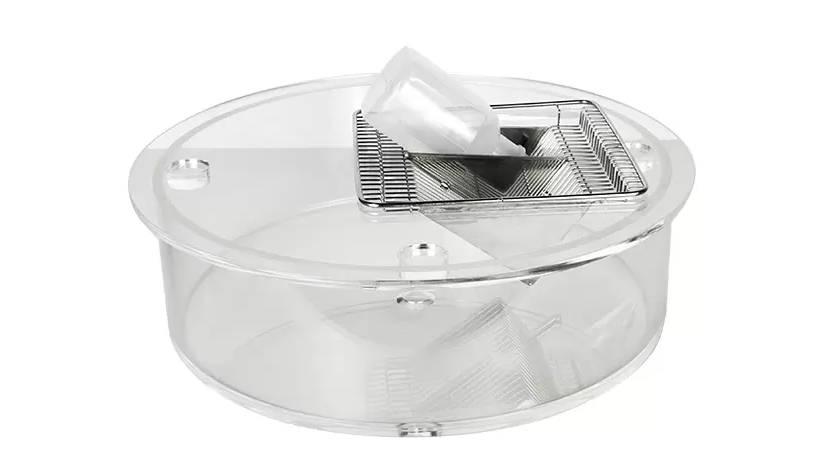

Mouse cage

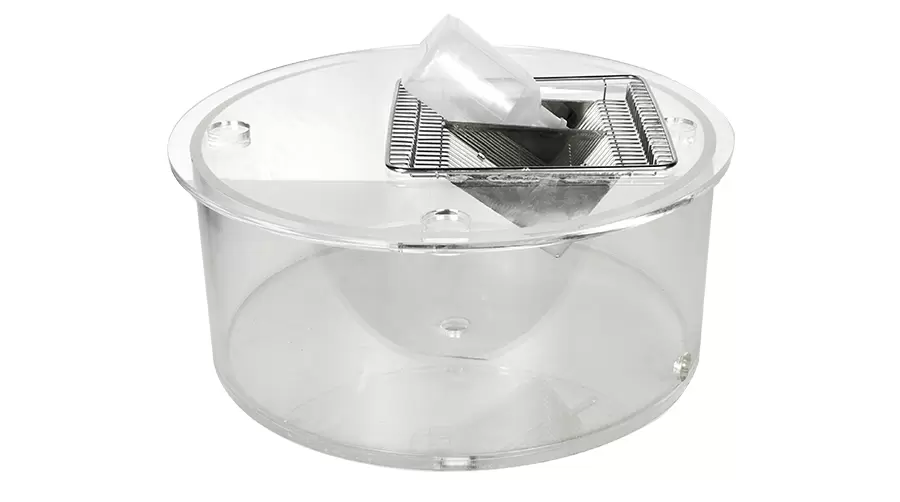

Rat cage<
Specifications
| Parameter | Specification |
|---|---|
| Working modes | Continuous, timed, intermittent and clockwise/counterclockwise |
| Rotational speed range | 0.1-20 RPM |
| Rotation direction | Clockwise, counterclockwise |
| Material of rod | Stainless steel |
| Specification of rod | Φ8 mm×33.5 cm |
| Height adjustment of rod | 2/3/4 cm |
| Specification of cage | Diameter: 36 cm; height: 15 cm (rat), 10 cm (mouse) |
| Recommended number | 1-3 rats; 5-10 mice |
Ordering Information
| Item | Product |
|---|---|
| YAN-2100-M | Small Animal Sleep Deprivation System, Mouse |
| YAN-2100-R | Small Animal Sleep Deprivation System, Rats |
| YAN-2100-MR | Small Animal Sleep Deprivation System, Rat and Mouse |
Appearance

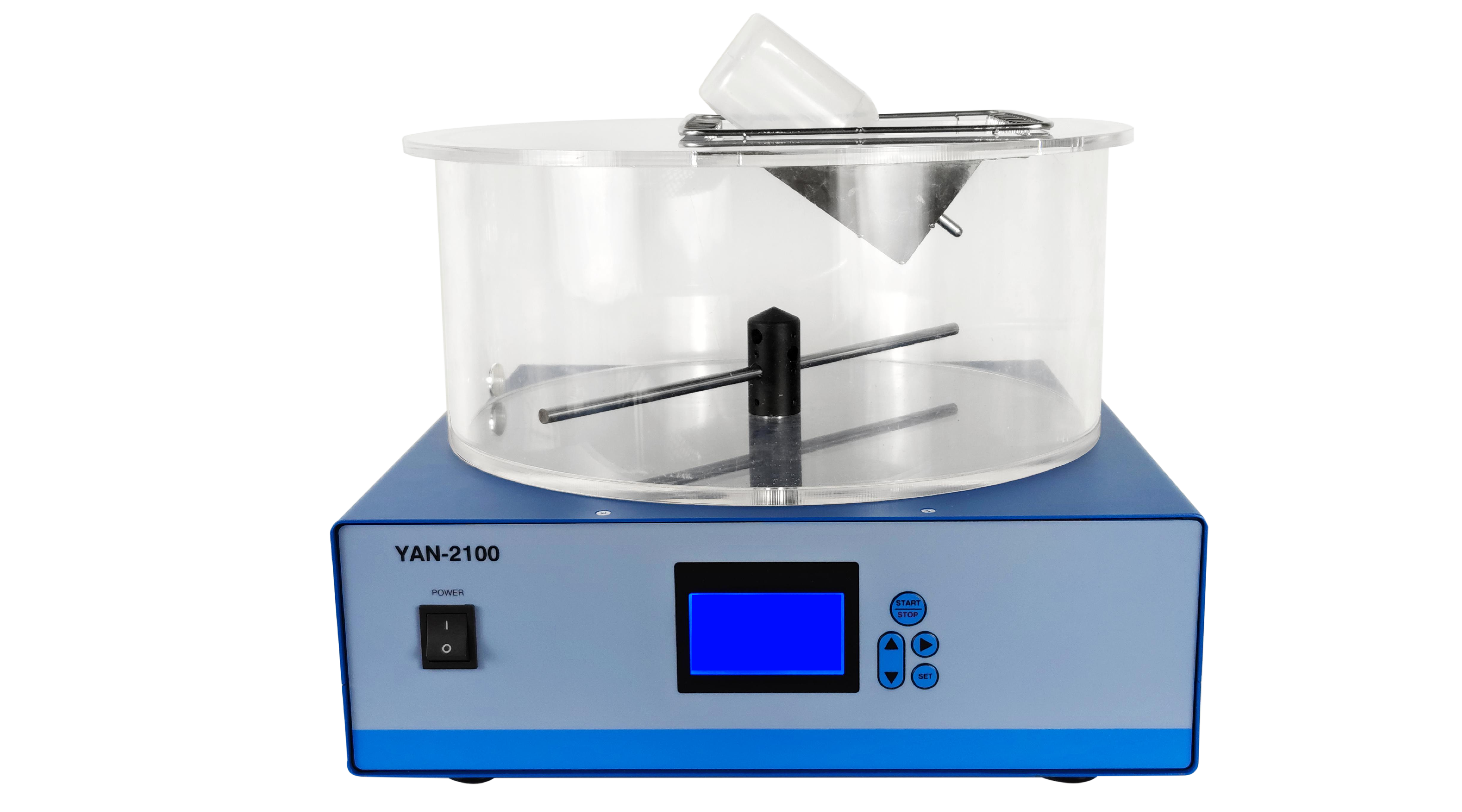

YAN-2100-M

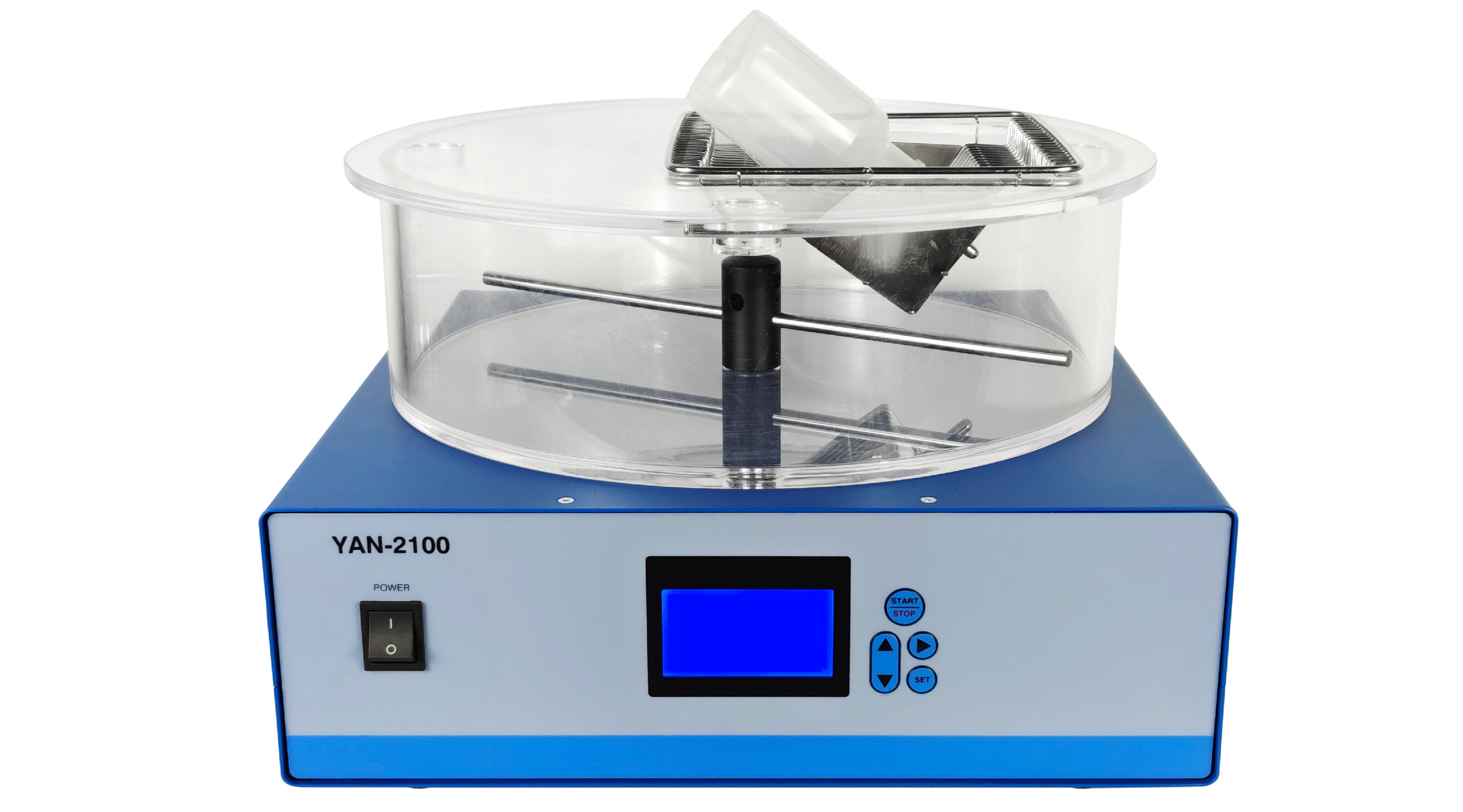

YAN-2100-R
